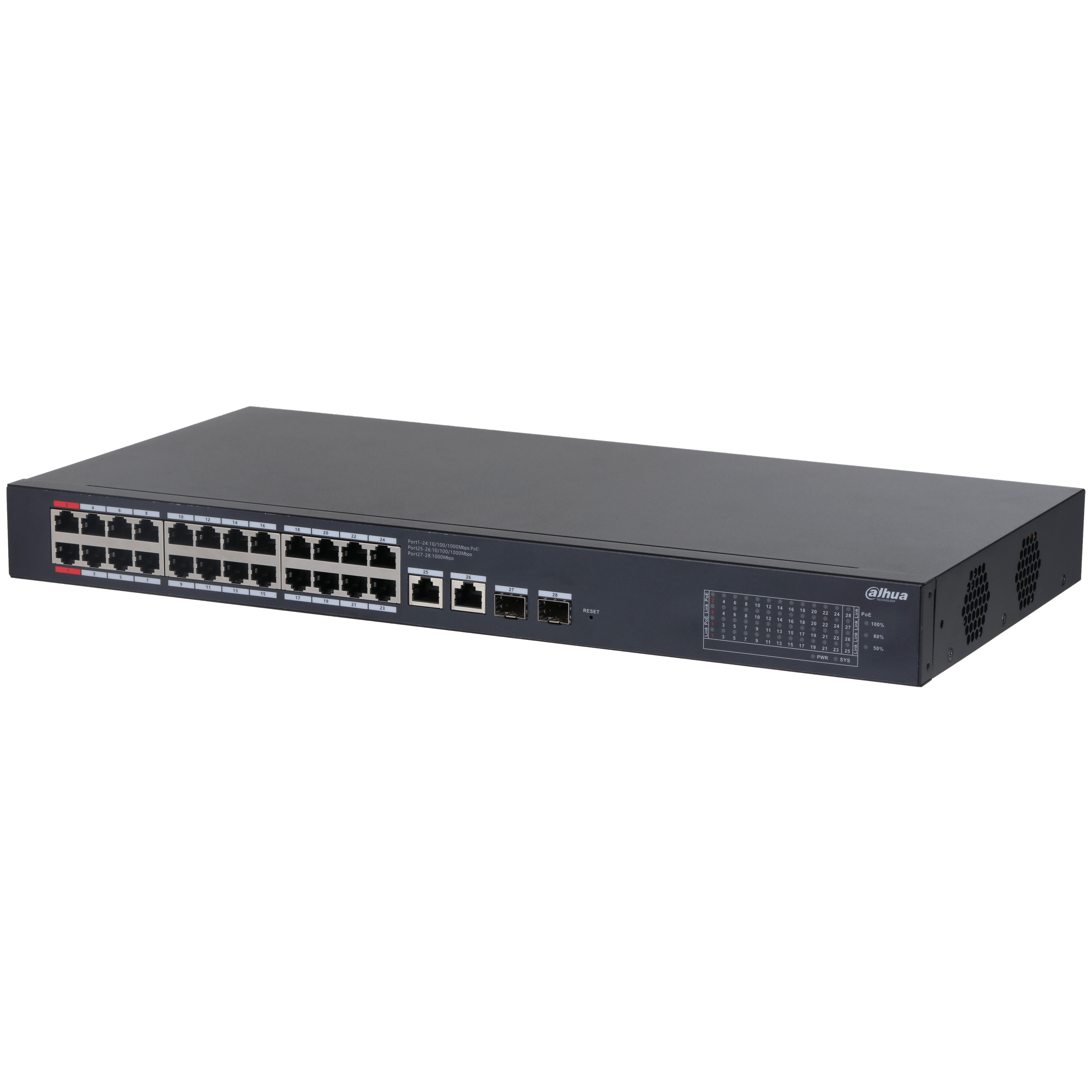

Dahua 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE

Dahua 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE
DH-CS4228-24GT-240
FEATURES
• Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
• Manages PoE power consumption and PoE power on/off.
• Supports Intelligent PoE.
• A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
• The Dahua Cloud Managed Switches allow you to add your devices by scanning the QR code and manage them using an integrated platform (mobile or WEB) via the cloud.
• The auto-generated network topology and rich management features enables an easy configuration and maintenance.
• A full set of PoE 2.0 functions is also provided, making it suitable for both surveillance and IT networking. Quick Deployment
• Deploy your devices and illustrate the corresponding topology on the app/web interface.
• Easy to add devices: Only requires one step (scan the QR code) to add your devices to your system.
• Topology auto-generation: DoLynk Care automatically identifies connected products and generates relevant topology.
• Unified platform: Remotely operate via web or app platforms, bringing convenience to conventional operation procedure.

Hardware
• Included Power Adapter : Yes
• PoE: Yes
• Ethernet Port: 24
• Ethernet Port Speed: 10/100/1000 Mbps
• Optical Port Speed : 1000 Mbps
• Ethernet Port Uplink Speed: 10/100/1000 Mbps
• Optical Port Uplink Speed : 1 Gbps

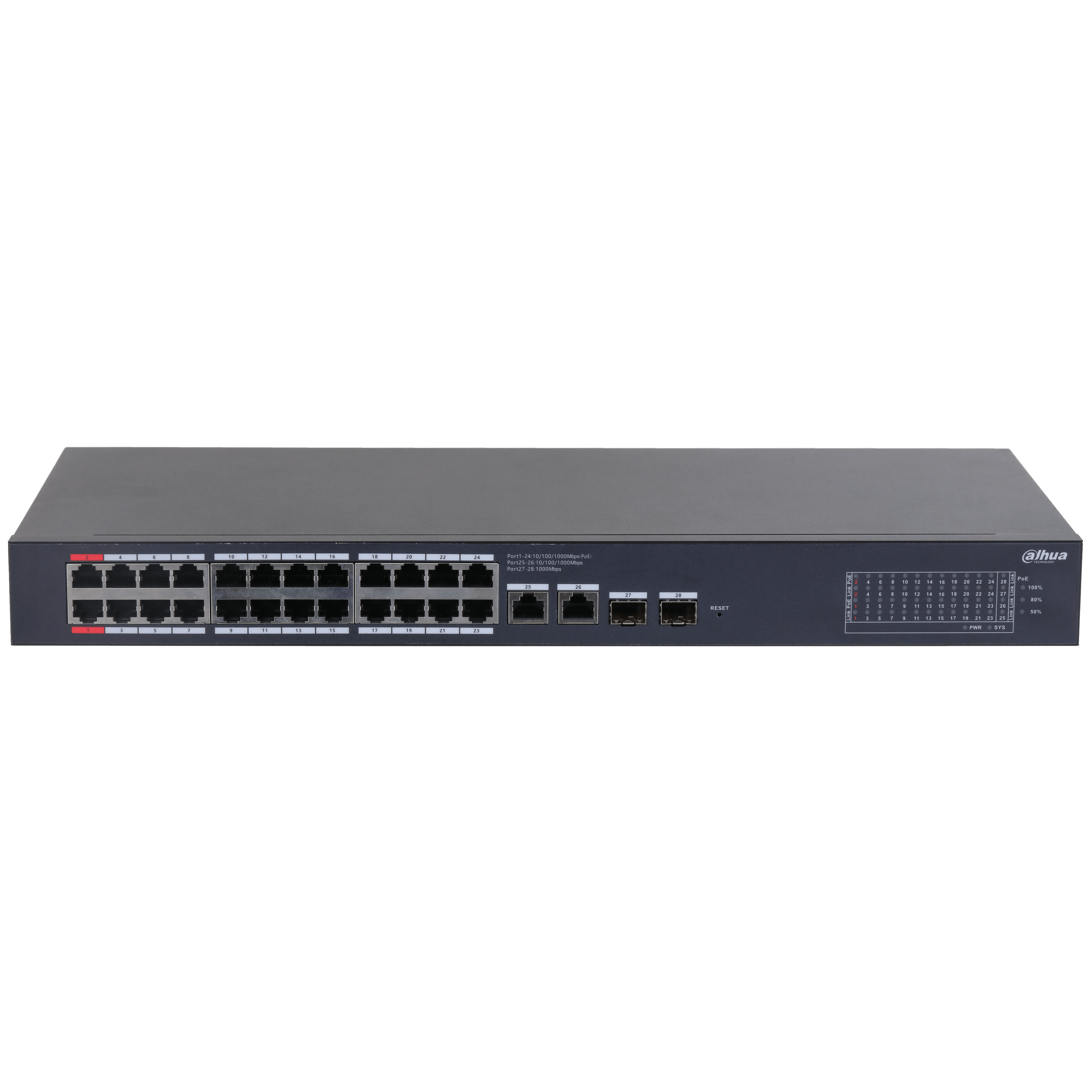

• Description of Function Slots: Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)
• Reset Button: 1
• Power Supply: Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A

Performance
• Layer : Layer 2
• Management Type : Yes
• Smart Managed Switch : Yes
• MTBF : 67.80 years
• Switching Capacity : 56 Gbps
• Packet Forwarding Rate : 41.66 Mpps
• Packet Buffer Size : 4 Mbit
• Jumbo Frame : 15K Byte
• MAC Table Size : 8K
• VLAN Number : 32
• Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

POE Features
• PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
• PoE Power: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W
• PoE Power Consumption Management: Yes
• PoE Pin Assignment: 1,2,4,5（V+）,3,6,7,8（V-）
• Long Distance PoE Transmission: Yes
• Spanning Tree Protocol: STP/RSTP
• VLAN Function: Port-based VLAN
• IEEE 802.3x Flow Control: Yes
• DHCP Function: DHCP Client
• Equipment Management: Web management; App management
