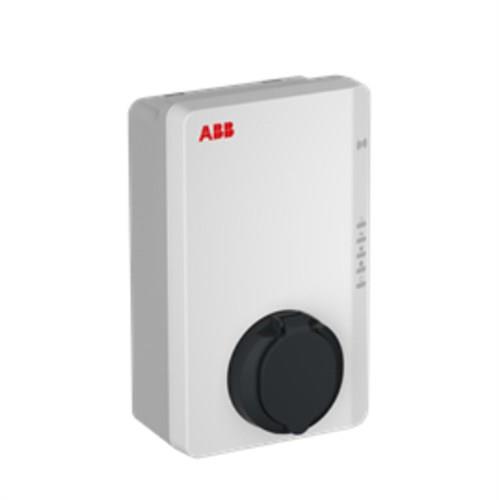

ABB EV Charger 1P 230V 7.4kW Wifi Bluetooth & RS485
TAC-W7-T-0
The Future Is Electric, And We’re Helping You Charge Ahead.
• The Terra AC charger is designed specifically for electric vehicles.
• It features RFID technology and comes with a 5m type 2 cable.
• With a voltage rating of 230VAC single phase, it has a rated power of 7.4kW and a maximum current of 32A.
• The charger is housed in an enclosure with an IP54 protection degree, ensuring durability and resistance to dust and water ingress.
• Connectivity options include Wifi, Bluetooth, and Ethernet, allowing for easy integration into existing networks.
• The charger also includes a built-in energy meter and can be integrated with advanced energy systems for dynamic load management.
• Safety features are comprehensive, including protection against overcurrent, overvoltage, undervoltage, ground fault, surge protection, and protective earth continuity monitoring.
• Additionally, the charger is enabled for remote software updates, ensuring that it stays up-to-date with the latest features and improvements.
FEATURES
• Brand : ABB
• Advanced Protection Systems : Overcurrent, Overvoltage, Ground fault, Integrated surge protection, Intergrated DC Earth Leakage Protection
• Authentication Method : RFID
• Certifications : CE, CB, MID, UL
• Charging Standard : Mode 3 charging, level 2
• Communication : OCPP 1.6 and RS485
• Configuration : ABB web portal or App
• Connection Type : Wifi, Ethernet (RJ45), Modbus RTU (RS485), Bluetooth
• Connector Type : Cable 5m, Type 2
• Degree of Protection : IP54
• Dimensions (mm) : 450W x 350H
• Energy Metering : Revenue grade energy meter Class B
• Housing Material : Plastic
• Maximum Current (A) : 32
• Mounting Type : Wall
• Network Configuration : TT, TN
• No. of Phases : 1
• Operating Voltage AC (V) : 230
• Operational Temperature Range (°C) : -35...+50 °C
• Overvoltage Category : III
• Rated Power (kW) : 7.4
• RFID Enabled : Yes
• Software Update : OCPP 1.6, ABB web portal or App
• Standards : IEC/EN 61851-1, IEC/EN 62957
• Status Indication : 5 LED's (Power / Connectivity / Authorization / Charging / Error)
• Storage Temperature (°C) : -50...+80 °C
• User Authentification : ABB RFID card or ChargerSync™ app and portal
• User Interface : Terra Config app, ChargerSync™ app or portal for setup
• Weight (kg) : 3.3 (net)
