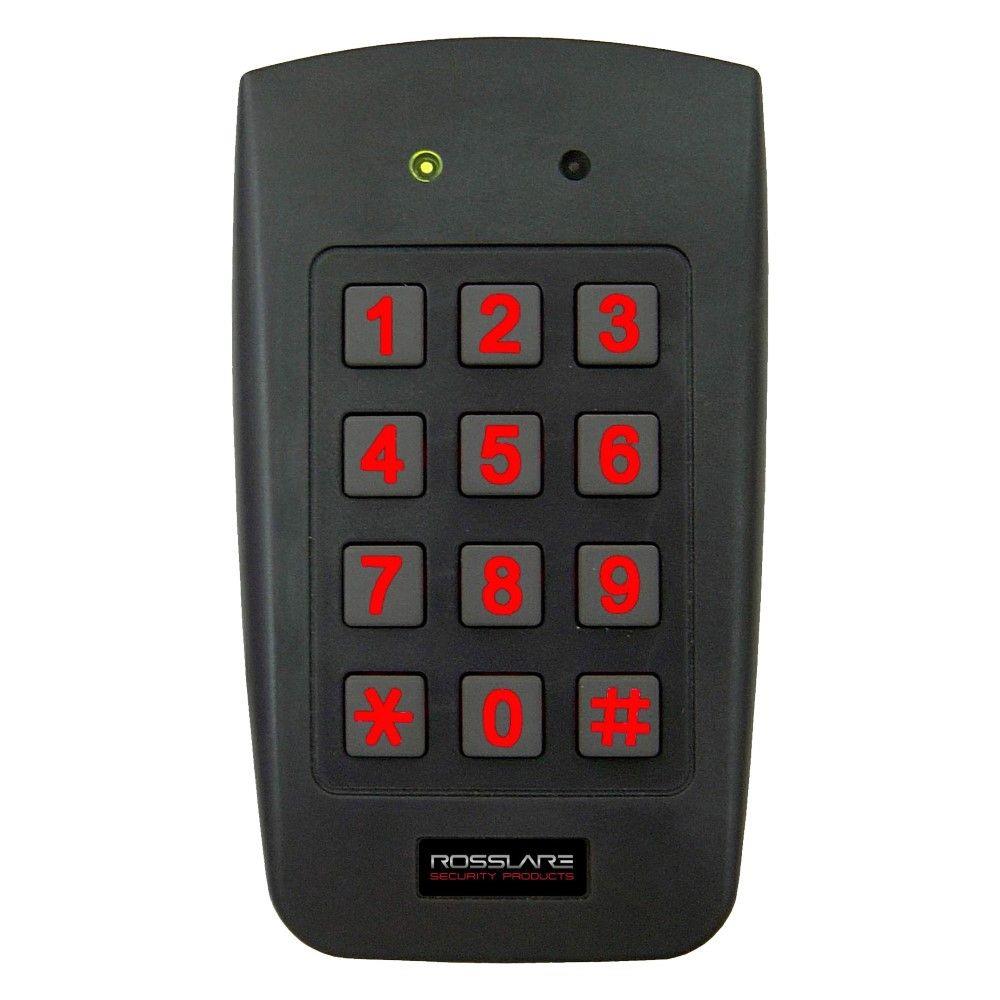

Outdoor Backlit PIN Standalone Controller
AC-F43
MAIN FEATURES
▪ Up to 500 users can be coded using Smart enroll and delete technology
▪ A mounting template and installation kit are provided
▪ Three user levels:
▪ Normal – Requires single PIN code
▪ Secure – Requires dual PIN codes
▪ Master User
▪ Three access levels:
▪ Normal
▪ Bypass
▪ Secure
▪ Suitable for Gang Box installations
▪ Programmable PIN code length between 4 digits and 8 digits
▪ Powered either by transformer (AC) or regulated power supply (DC)
PROFESSIONAL GRADE FEATURES
▪ Water-resistant and UV-resistant, meets IP65
▪ Internal buzzer
▪ Two inputs: REX and Auxiliary
▪ Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
▪ Two tri-colored status/programming LEDs
▪ Ten programmable auxiliary behavior modes including Door Ajar, Forced Door, Alarm Shunt, and Door Monitor
▪ Programmable chime and siren when using BL-D40 and '' bell button
▪ Built-in optical back tamper
