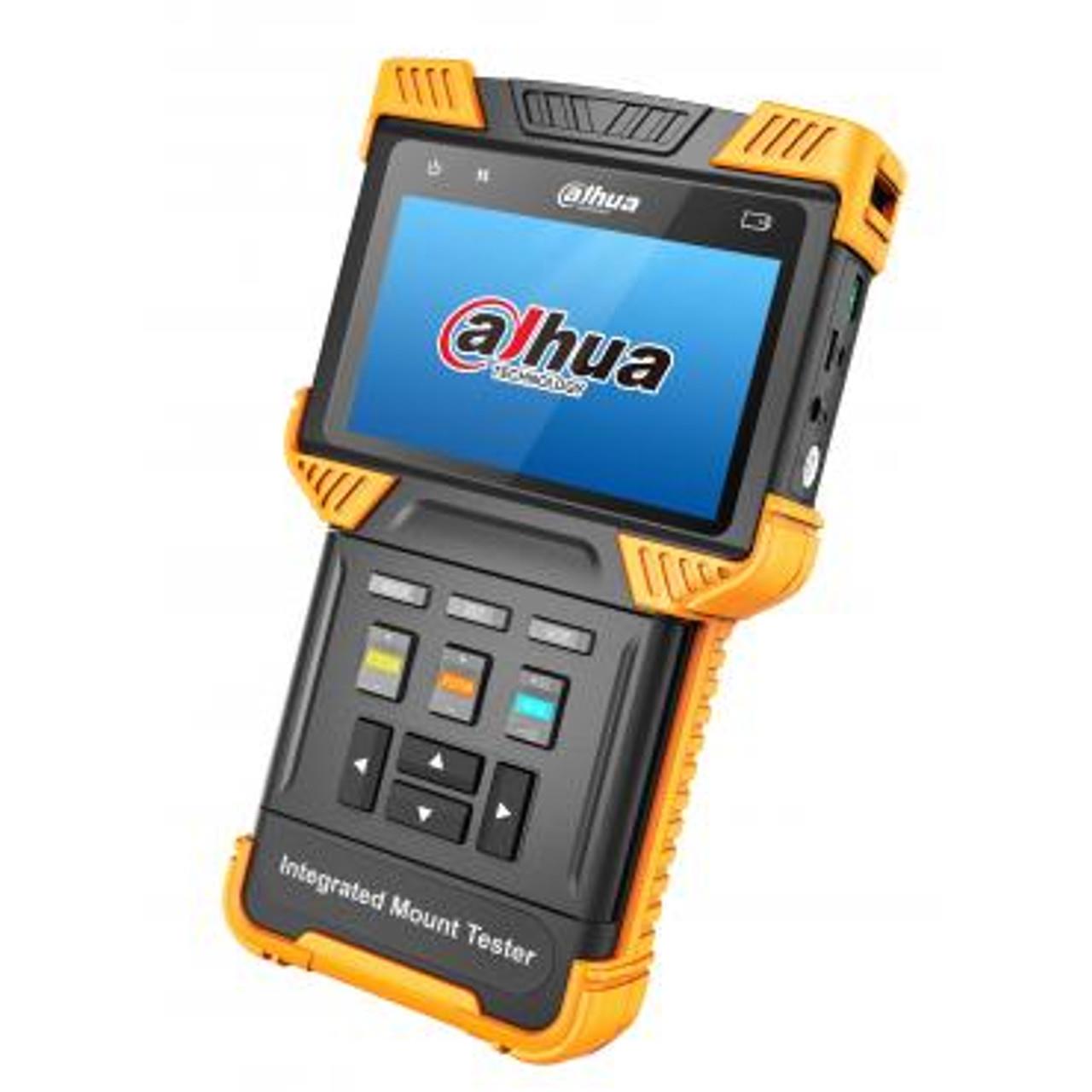

Dahua Integrated Mount Tester

Dahua Integrated Mount Tester
DH-PFM900
FEATURES
Physical Port
• Network Port 2*10/100/1000M RJ45 port, support switch mode
• Function Port 2*BNC port (Video IN and Video OUT), 1*RS485, 1*Audio In, 1*USB, 1*Reset

IPC Test
• Protocol ONVIF 2.4.1, RTSP, RTP
• Ethernet Test 10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test
• IP Configuration static IP/ DHCP client/ DHCP server
• IPC Test Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(recording original data stream)

HDCVI & Analog Test
• Format NTSC, PAL
• Resolution D1, 720P, 1080P
• Signal Level 1Vpp
• Camera Test Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(H.264)
• HDCVI OSD Camera configuration

PTZ Control
• Protocol More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc.
• Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Detection
• TDR detection 0~150m net cable detection, resolution 2m
• POE test PD test
• PSE test
• Network Analyze Sniff, list subnet, ping
• Analog Video Generator Generate PAL/ NTSC video signal of various test pattern
• Record Playback Support local playback

System Specification
• Screen 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjustable
• Operation Method Power key, 12 control keys, QWERTY flip keyboard with 45 keys
• Auto Power Off Disable/ 5~60 minutes
• Keyboard Tone Enable/ Disable
• Upgrade Support online upgrade

Power
• Power Input POE port by POE midspan
• POE Midspan Input AC100~230V 50~60Hz, output 48V/15w
• Battery Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh
• Power Output POE (802.3af, 802.3at)
• DC12V 2A
• Time Charging time 3~4 hours, working time 10 hours

Other
• Internal Storage 8GB flash
• LED Light 2*35lm LED light
• Working Temperature -10ºC~+55ºC
• Working Humidity 30%~90%
• Dimensions 190x113x37mm
• Weight 0.5Kg
