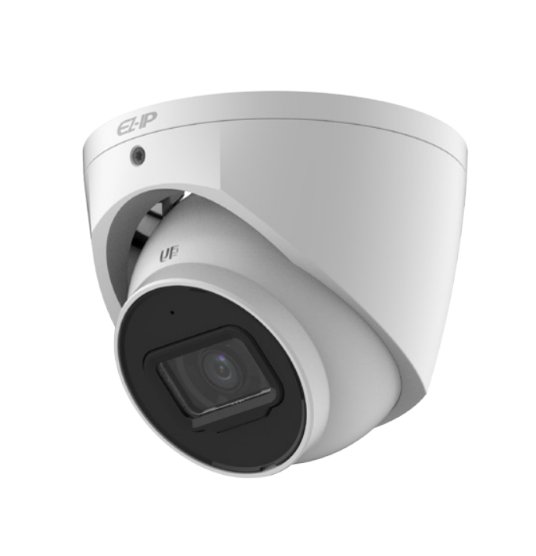

EZIP 6MP IR Fixed-focal Eyeball Network Camera
EZ-IPC-T1B63-SMD
FEATURES
• 1/2.7" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 3072 × 2048 (3072× 2048) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 30 m.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Supports max. 256 G Micro SD card; built in MIC.
• 12 VDC/PoE power supply.
• IP67 protection.
• SMD Plus.
Overview
• Launched by EZIP Technology, it is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm.
• It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets.
• Based on EZIP's advanced technologies, it provides intelligent, simple and inclusive products and solutions.
• With advanced deep learning algorithm, EZIP network camera supports intelligent functions, such as perimeter protection and smart motion detection.
• With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
SMD Plus
• With intelligent algorithm, EZIP Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart H.265+ & Smart H.264+
• With advanced scene-adaptive rate control algorithm, EZIP smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
• With deep learning algorithm, EZIP Perimeter Protection technology can recognize human and vehicle accurately.
• In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
WDR
• With advanced Wide Dynamic Range (WDR) technology, EZIP network camera provides clear details in the environment of strong brightness contrast.
• The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Cyber Security
• EZIP network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage.
• These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
• IP67: The camera passes a series of strict test on dust and soak.
• It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
• Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
