CM797B

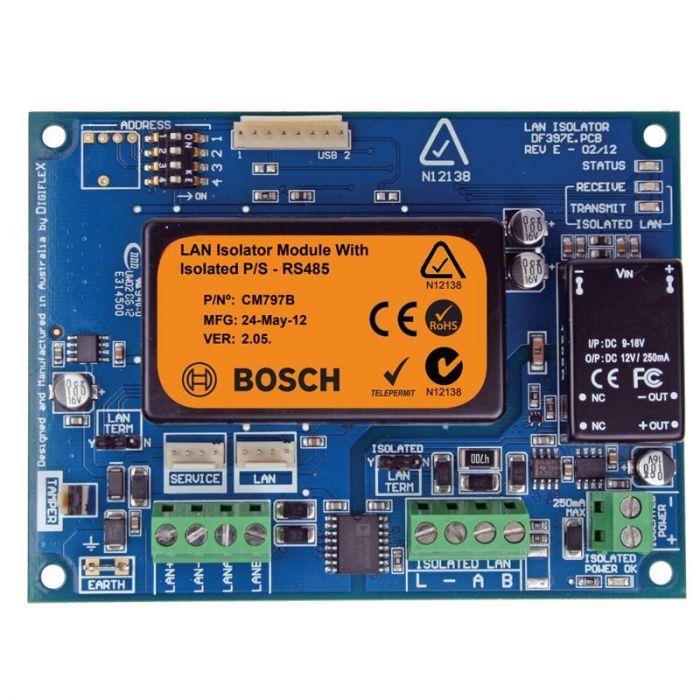

Bosch RD485 Lan Isolator Module + Power Supply
FEATURES
• Up to 8 LAN isolator modules can be connected to the Solution 16i, Solution 144 and Solution E Series Panels.
• Isolators provide electrical isolation between LAN segments reducing the chance of surge damage.
• Isolators can also be used to increase the total LAN length.
• Provides 2.5KV electrical isolation between different LAN segments or between the LAN and other modules.
• Regenerates the LAN signals allowing the total LAN length to be increased beyond the standard length of 1200 meters and also provides a 2.5KV isolated 12V @ 250mA power supply which can be used to power keypads or LAN prox readers providing complete electrical isolation for devices located on the outside of buildings etc.
• The isolator module helps eliminate earth loops in the LAN cabling, improves surge immunity and protects LAN sections from faults and tampering.
• When the LAN is being connected between separate buildings, an isolator module must be installed in each building to provide the best surge protection.
