WEB200A-1

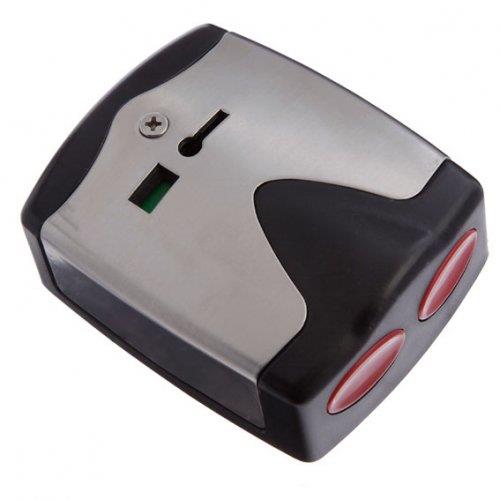

Secor Dual Push Panic / Duress & Holdup Button
FEATURES
• EOLRs included for both alarm and tamper output
• Wide range of selectable EOLR values to suit most alarm panels
• Back and front tamper protection
• Innovative patented design allows for easy interchange between latching and momentary settings
• Dual push panic button, patented design, s/s cover, key reset, EOLRs included for all major alarm panels
• Two outputs: alarm and tamper
• Momentary and latching convertible
• Front and back tamper switches
• EOLR included for both alarm and tamper output
• Two sets of EOLR values selectable via DIP switch
• 0, 1k, 2k, 3.3k 4.7k, 5.6k, 6.8k, 7.9k (part number: WEB200-1)
• Switch
• Load: 1A 30VDC/125VAC
• Contact resistance: 0.1?
• Insulating resistance: 100M?
• Mechanical life: 100,000 cycles
• Operating Environment: -25 to 70 °C
• Dimensions: 80 x 65 x 34mm
