System Sensor Photoelectric Smoke-alarm with Integral Temp-3 Sounder

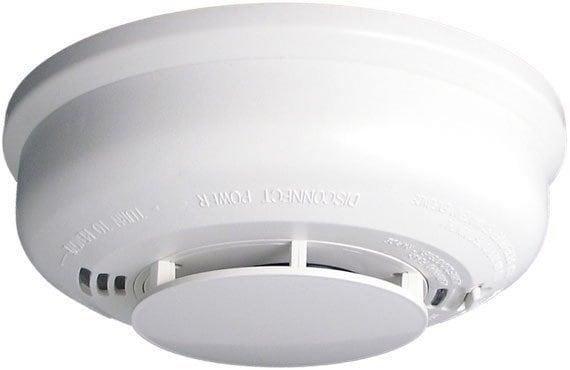

System Sensor 2012-24AUSI Photoelectric Smoke Sensor with Backup Battery
L01-6233-000
FEATURES
• The System Sensor 2012/24AUSI smoke alarm is designed for open area protection in residential buildings.
• These multi-voltage, 4 wire smoke alarms can be connected to many third party devices such as security alarm systems and access control systems.
• Size: 55mm (H) × 135mm (diameter)
• Weight: 220 grams
• Humidity Range: 5%~93% RH, noncondensing
• Temperature Range: 0?~50?
• Operating Voltage: 10VDC~30VDC
• Standby Current: 60 μA maximum average
• Alarm Current: 65 mA maximum average @ 10VDC~30VDC
