ANT12-5G360

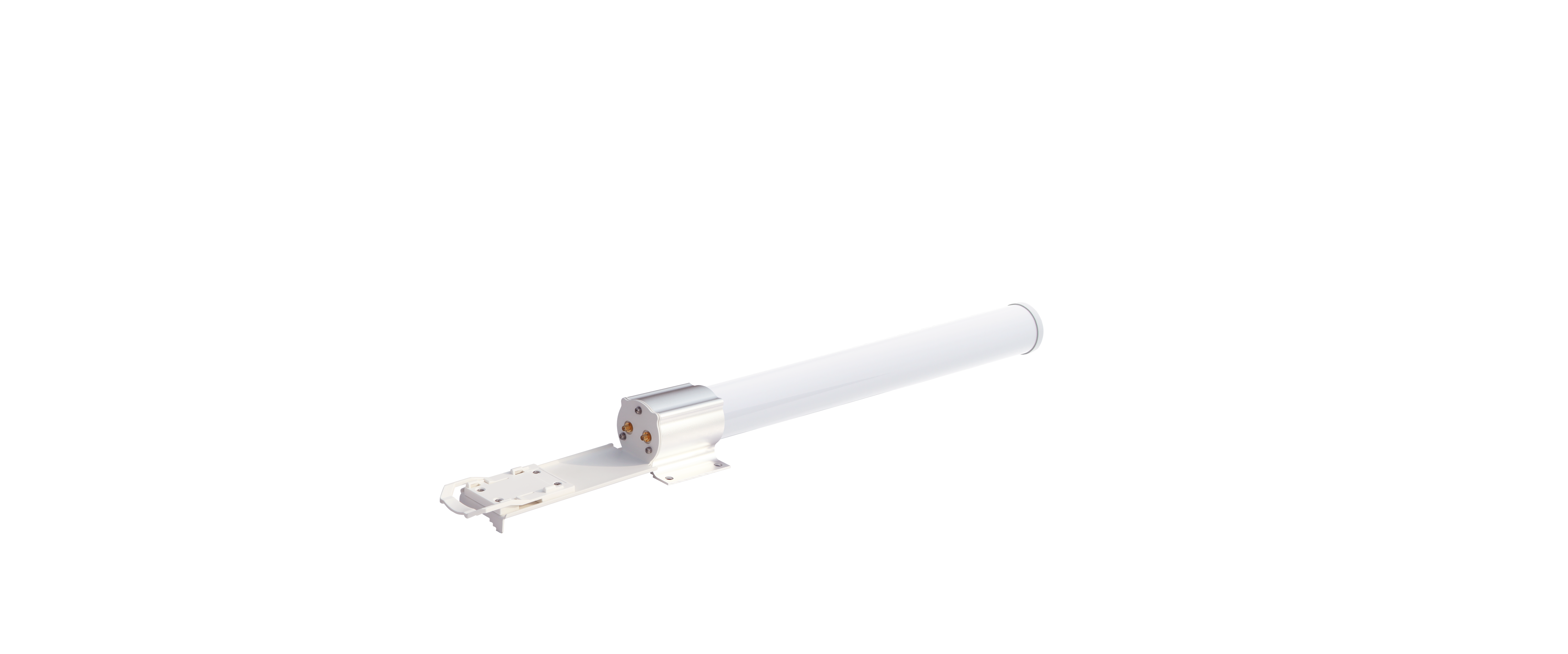

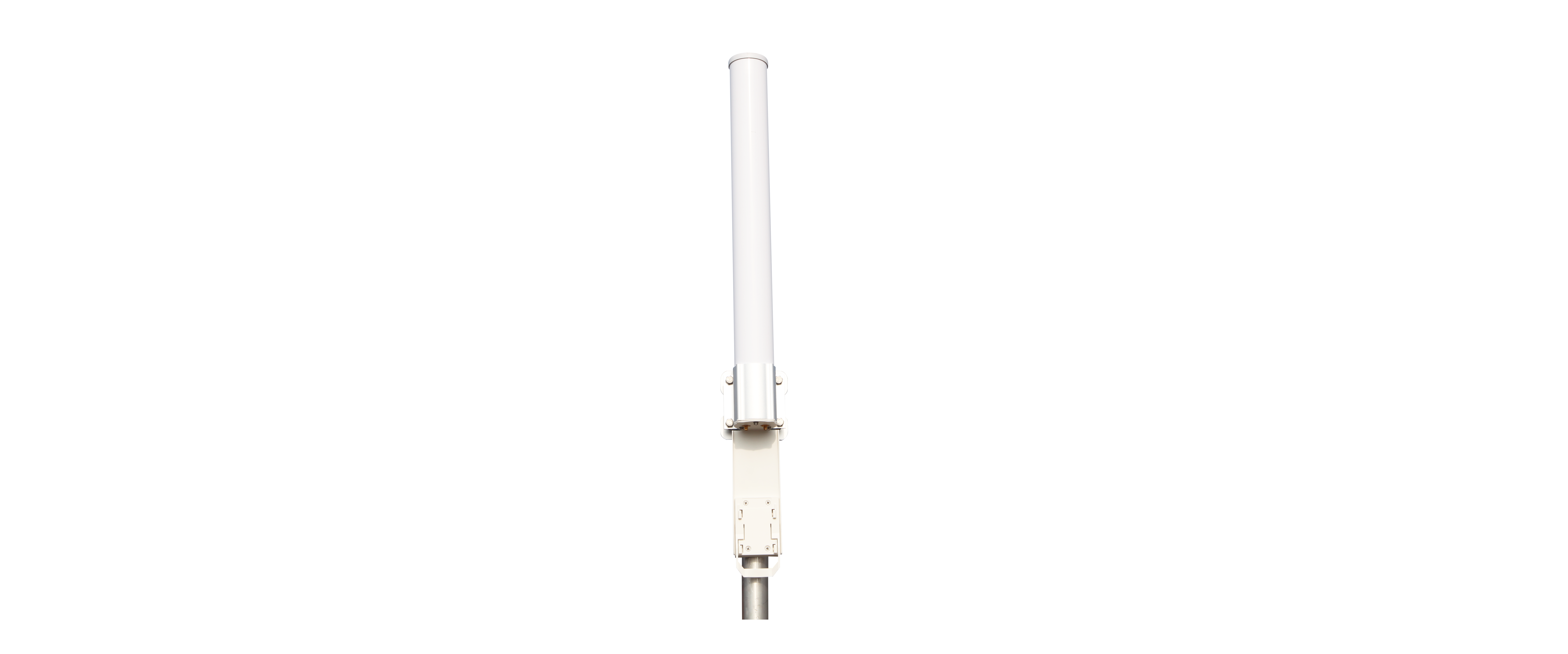

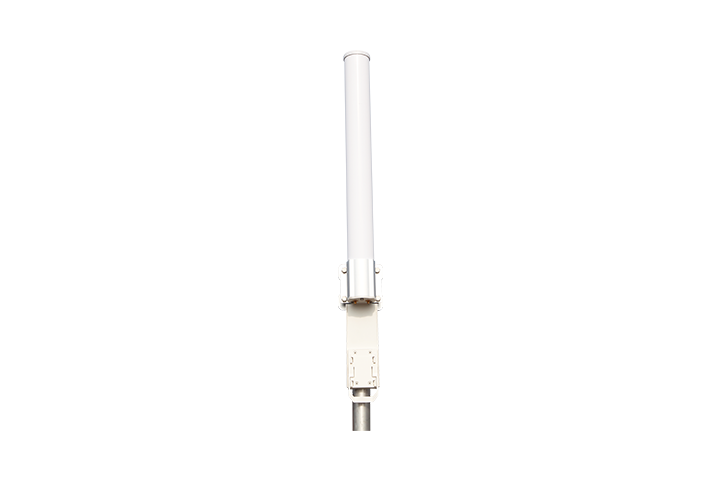

IP-COM 5GHz 12dBi Dual Polarity Omni Antenna ANT12-5G360
FEATURES
• Dual polarization design
• Two RP-SMA Radio Connector
• Operating frequency at 5100~5850MHz
• Mount pole Diameter 30-70mm
• Designed for PtMP solutions for private ISP wireless connectivity and CCTV surveillance.
• Pair with IP-COM base station BS6, it delivers 360° coverage for end clients and the transmission range can be up to 1km.
• Powerful Omnidirectional Coverage
• Provide 360° coverage and 2x2 MIMO performance for P2MP applications.
• Plug and Play Integration
• Built-in base station mount bracket, so no tools are needed to install the Base Station BS6.
• Industrial-Strength Construction
• Designed with robust mechanical design for outdoor application use.

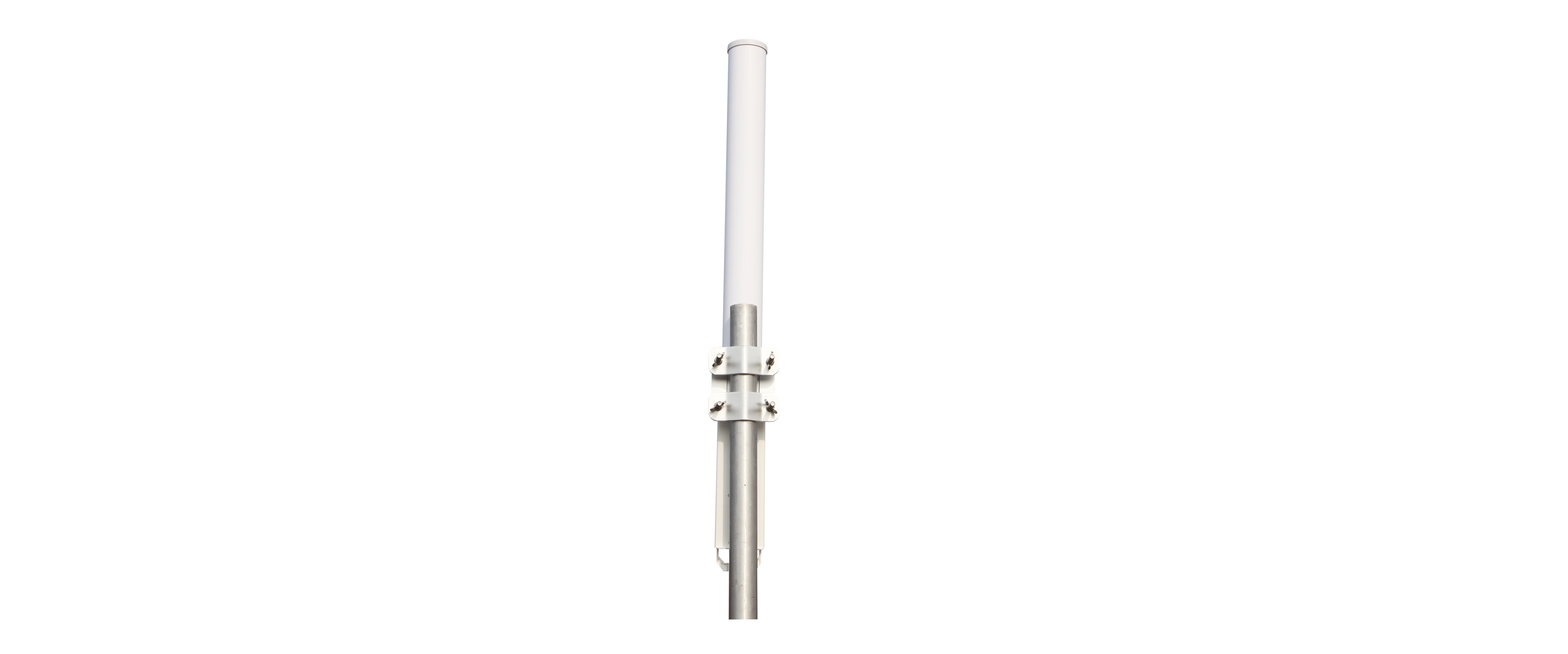

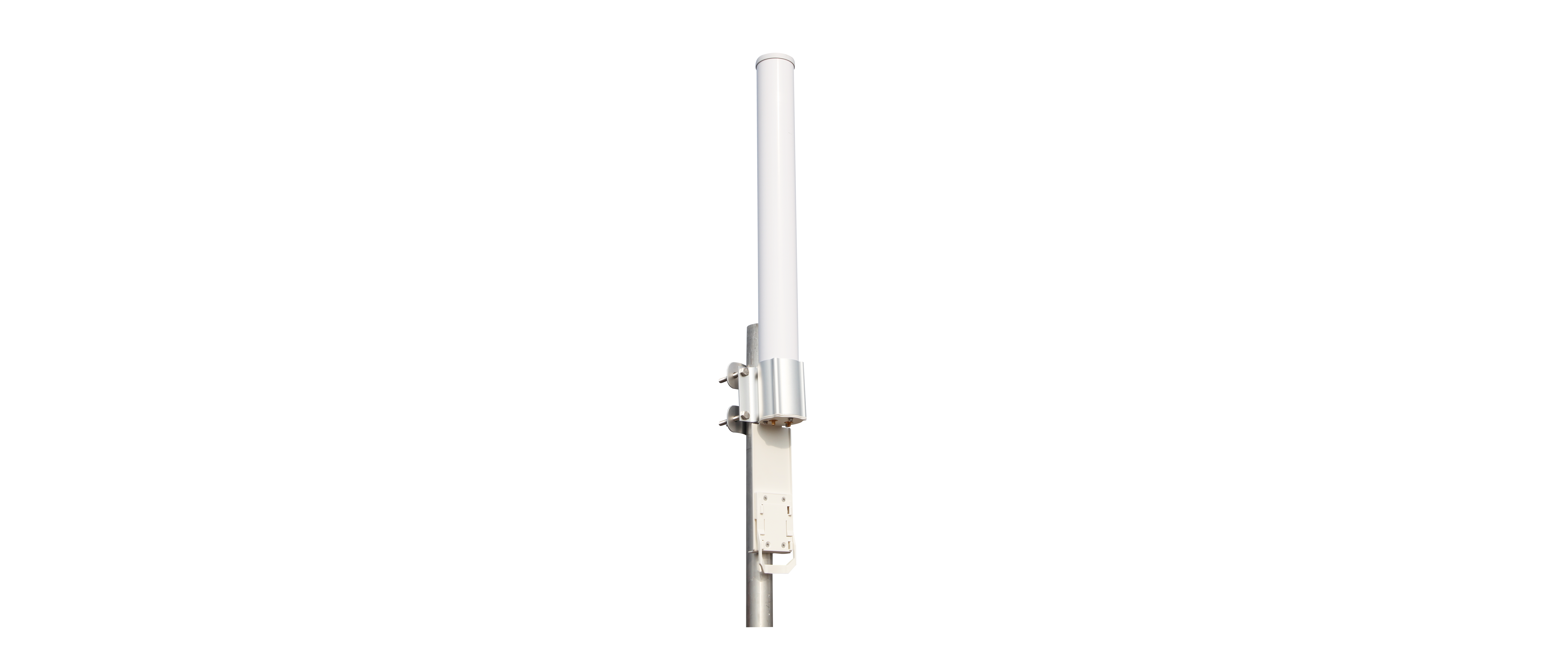

• Deployment Pole Mount
• Application Scenarios Pair with BS6 to deliver PtMP wireless connection for Privated ISP access or CCTV Surveillance
Electrical Parameters
• Frequency Range 5100~5850MHz
• Gain 11~12dBi
• Polarization Horizontal and Vertical
• Horizontal Beamwidth (6dB) 360°
• Vertical Beamwidth (6dB) 360°
• Elevation Beamwidth 6°
• Front-To-Back Ratio /
• Isolation 20dB
• VSWR <2
• Maximum Power 20W
• Impedance 50Ω
Mechanical Parameters
• Dimensions Φ70*870mm
• Mounting Pole (D30-70mm)
• Mechanical tilt capability /
• Connector Type 2*RP-SMA
• Operating Temperature -55°C to +70°C
• Operating Humidity 10%~90% non-condensing
