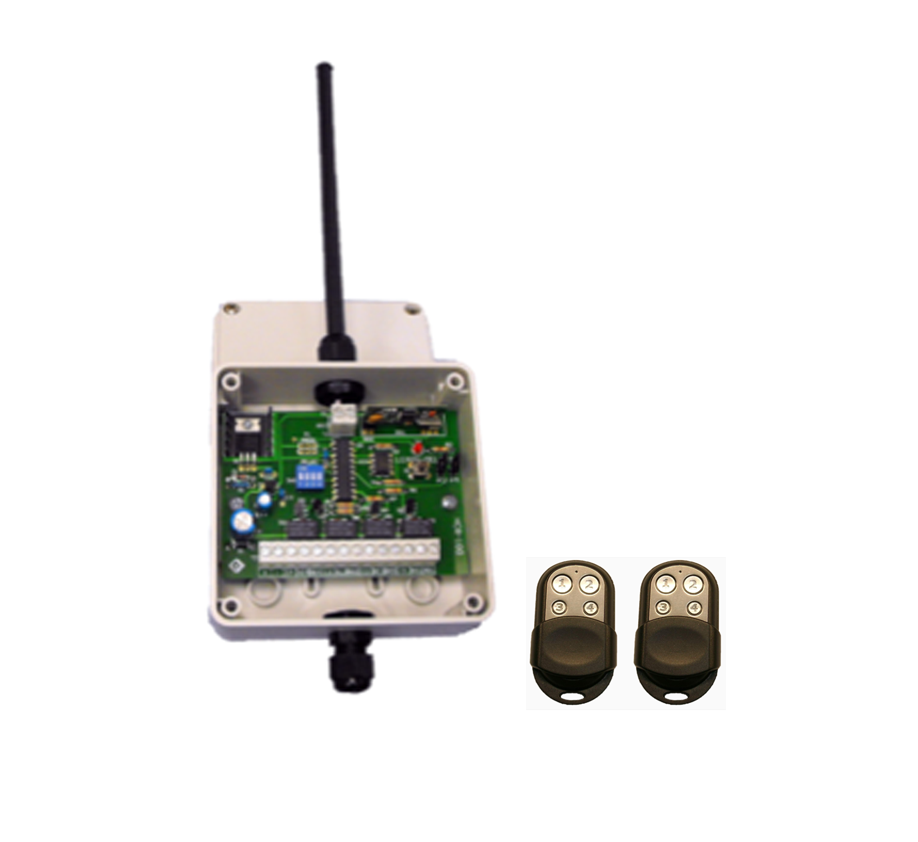

4 Channel RX and 2x HCT-4 Keyfobs
HCR-100K
FEATURES
• The HCR-100 is a general purpose 433.92Mhz Keeloq (TM) rolling code receiver with four (4) SPDT relay outputs available to control external devices.
• The 4 relays can each be programmed to work with different buttons on individual remote controls.
• The relays are also programmable via a DIP switch for momentary, latching or timed control.
• This receiver can be powered from 12 to 24V AC or DC.
• The HCR-100 is housed in an IP56 water resistant enclosure for weather protection making it ideal for any outdoor application.
• Operating Voltage: 11 to 30VDC, 11 to 24VAC
• Current Consumption: @ 12VDC Standby 15mA, All relays 60mA
• @ 24VDC Standby 23mA, All relays 72mA
• @ 24VAC Standby 82mA, All relays 190mA
• Physical Dimensions IP56 Case 100mm x 100mm x 50mm
• Antenna tube 150mm
• Output Channels 4
• Output Ratings SPDT relay 1 Amp switching
• maximum @ 24VDC.
• Contacts are voltage free.
• Reverse Polarity Protection Yes ( diode)
• RF Operating Frequency 433.92mhz
• Receiver type Super heterodyne narrow band
• RF Signal Type ( Data Transfer) On Off Keying ( OOK)
• Keeloq TM Code Hopping
• Coding Combinations 4.2 billion
• Learning Capacity ( RF Devices ) 900 fobs
