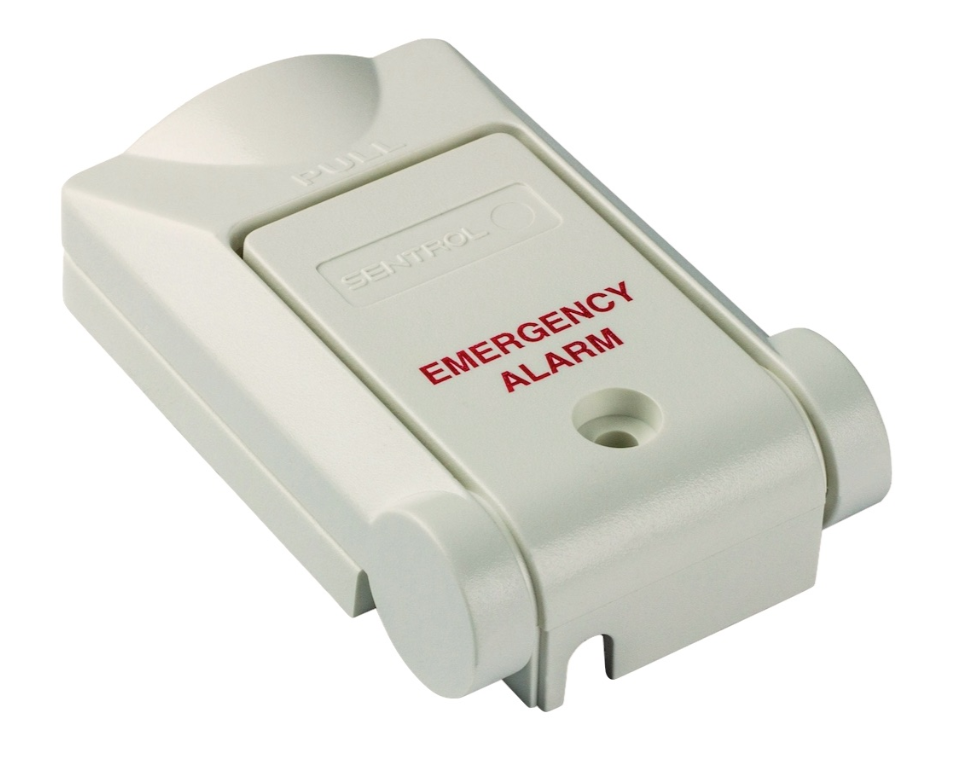

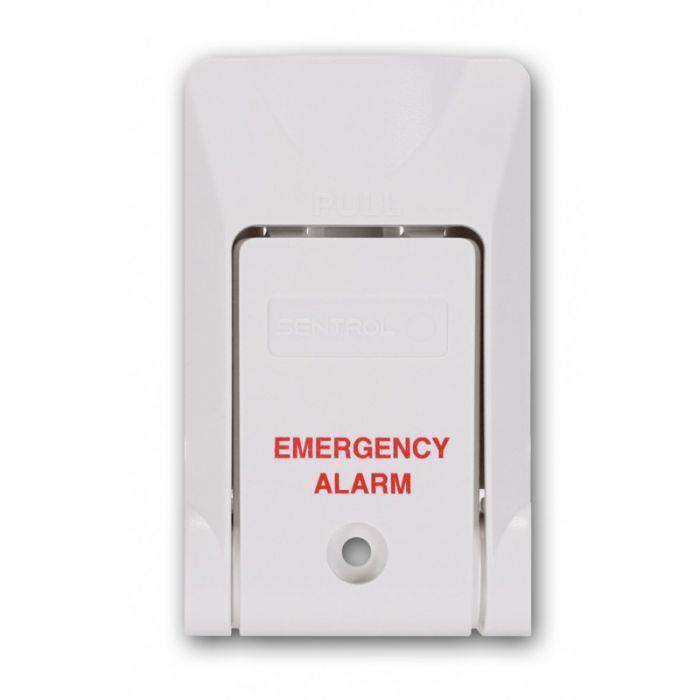

Sentrol Surface Panic Switch White SEN3045-W

Sentrol Surface Panic Switch White
SEN3045-W
FEATURES
• The Sentrol 3040 Series Panic Switch activates the SPDT switch (SPST on the 3045 model) when the user pulls the actuating lever.
• On the 3040 model, an external LED lights and latches, indicating that the alarm circuit has been activated.
• The lever is closed first to rearm the alarm switch, then the latching LED circuit is reset externally at the host panel.
• The 3045 model has no LED or latching circuit.

APPLICATIONS
• Mounted out of sight but within easy reach for manual activation, such as under desks or counters in banks, jewelry stores and other facilities where people or property are at risk.
• The 3045 and 3055 models can be used in residential installations when a panic switch is
needed.
• Models with the LED and latching circuit, can be used as a panic switch in medical care facilities.
• All models provide low-profile and reliable alarm protection.
