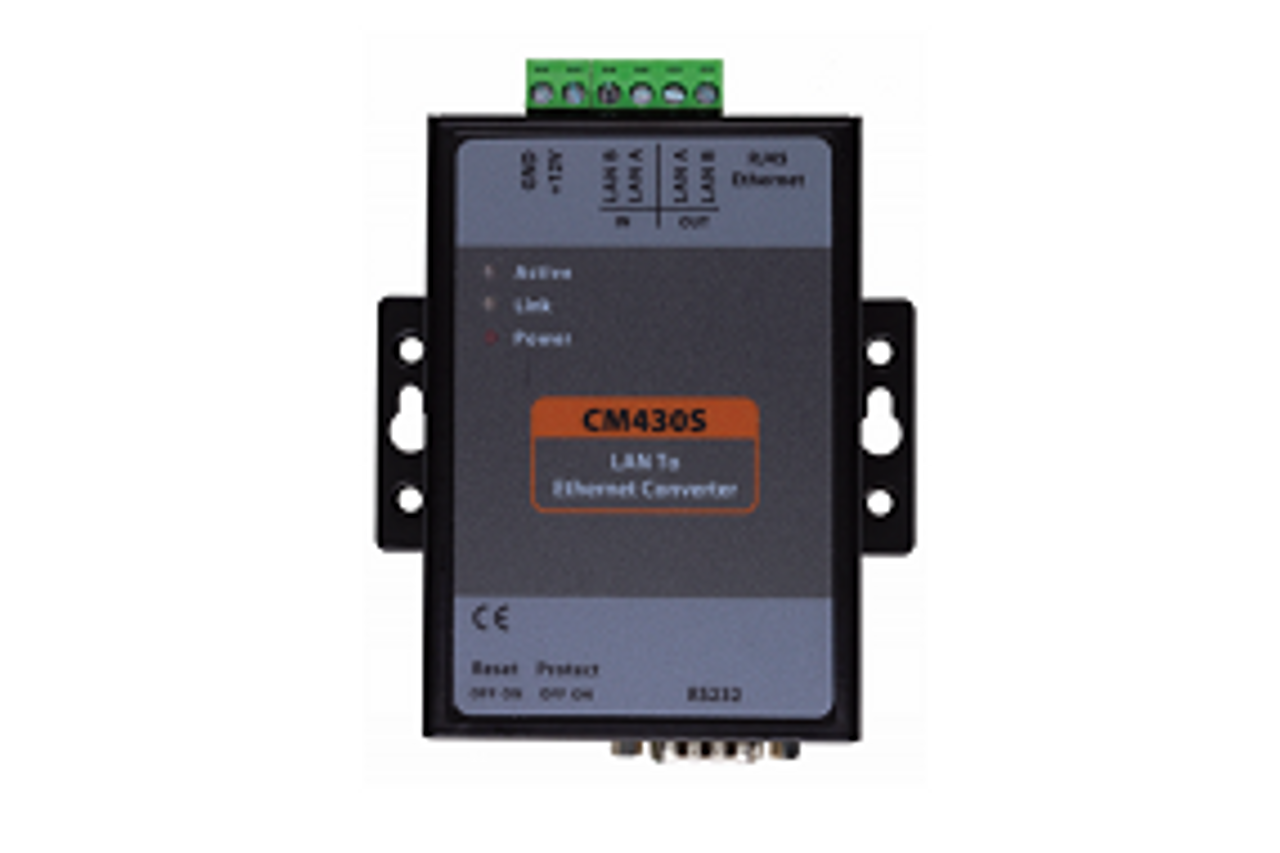

Bosch RS485 LAN To Ethernet Module
CM430S
FEATURES
• The CM430S allows you to extend the control panels RS485S LAN across a local network.
• Table 1: shows the panel and panel firmware which are compatible with the CM430S converter module.
• MENU 7-7-0, Option 5 (Extend LAN Fail) must be set when using the CM430S.
• LAN To Ethernet Module - Supporting Star Configuration
• Operating Voltage: 10.5V D.C - 14.5V D.C. @ 150mA Max
• Module Connection (RS485 LAN): Ethernet Interface: 10 / 100Base-T, Half / Full Duplex / RS485 • Signal: 2 wire Data+/- Operating
• Environment: 0˚ to 55˚C RH 5 to 80% at 30˚C non-condensing.
• Certification: EN55032:2012, EN55024: 2010.A1:2015, EN61000-3-2:2014, EN61000-2-2:2013
