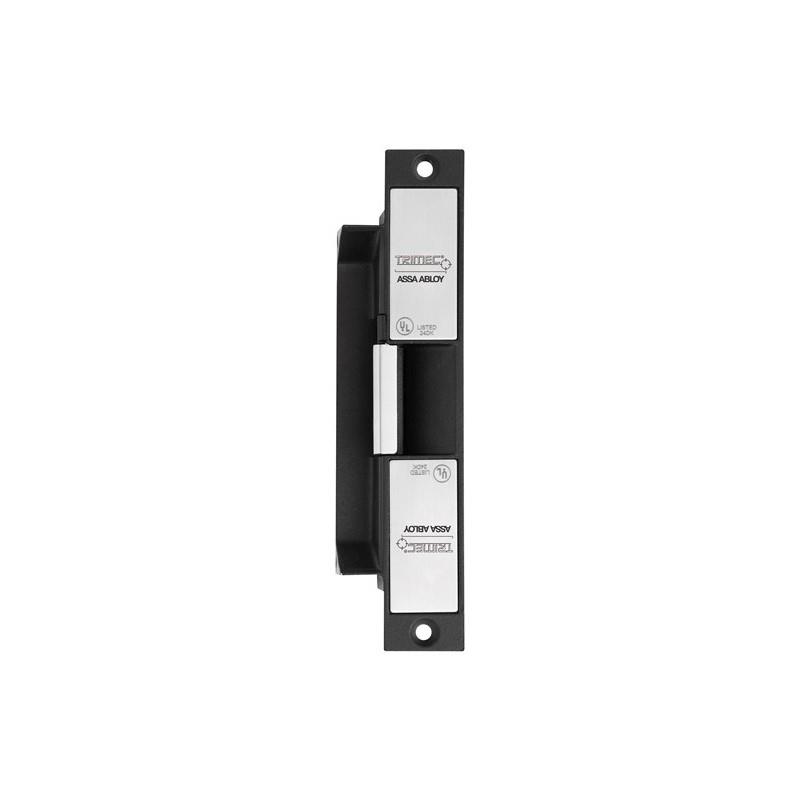

Trimec ES202 12VDC PTO Non-Monitored Electric Strike. Fail Secure

Fail safe/fail secure changeable on site.

The ES200 series electric strikes are high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24Vdc.

They offer a strong, dependable and long-lasting electric strike solution.

Key Features

• Fail safe/fail secure changeable on site
• High security
• Fire Rated
• 850kg holding force
• 1 million cycles endurance rating
• Cast stainless steel body
• Stainless steel locking pins
• Low Current consumption - 175mA @12Vdc after 1 second
• Mounting kit supplied as standard
• Australian designed
• TRICARE^® 5 Year Warranty

Applications

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance

• S3 (Security) Australian Lock Standard (AS4145.2.· 2008)
• D3 (Durability) Australian Lock Standard (AS4145.2· 2008)
• BS 5872 Approved
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
• For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
• Approved to UL1034 (highest level)
• CE approved (EMC, ROHS & REACH)
• Regulatory Compliance Mark (RCM) approved
