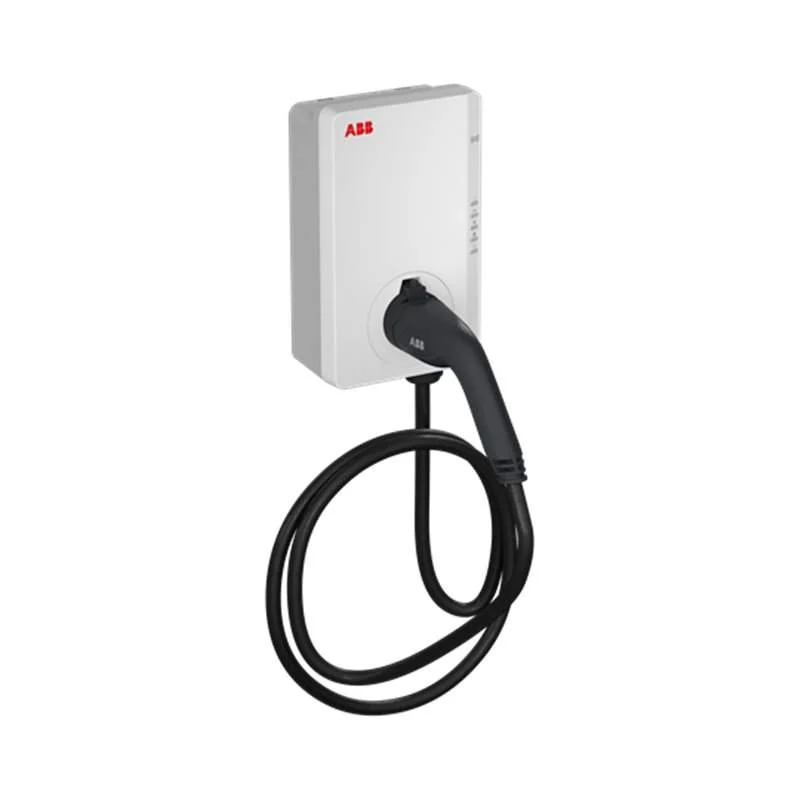

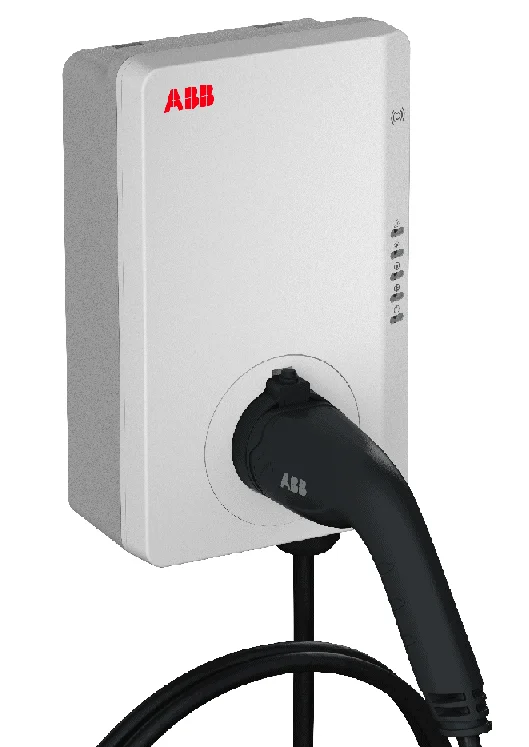

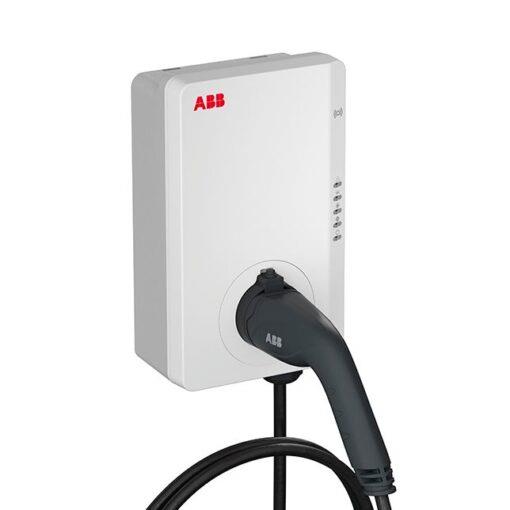

ABB Terra AC Wallbox Type 2, Cable 5m, 3-phase/32 A, with RFID and 4G
TAC-W22-G5-R-C-0
The Future Is Electric, And We’re Helping You Charge Ahead.
• The ABB Terra AC Wallbox 22 kW incl. 5m Type-2 charging cable
• The ABB Terra AC wall charging station is a high-quality yet cost-effective wallbox for hybrid + electric vehicles, which stands out for its range of functions, reliability and ease of use.
• In addition to the fixed 5m Type-2 charging cable, the ABB Terra Wallbox TAC-W22-G5-R-C-0 is equipped with LAN+WLAN+4G and a Bluetooth interface.

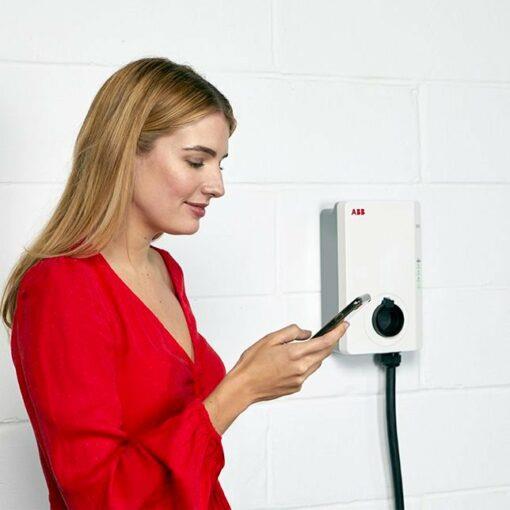

• The latter can be used to conveniently set up or control the 22kW charging station via the free apps (Android + Apple).
• Ease of use + reliable function
• 1st place in the ADAC Wallbox Test 2021 (identical model)
• Flexibly adjustable charging power
• Fixed Type-2 charging cable with 5m length
• Connectivity via LAN + Wi-Fi + Bluetooth
• Convenient app setup + control via Bluetooth (Android & Apple)
• LED status display on the wallbox
• DC fault protection integrated (6 mA DC)
• RFID authorization of the charging process possible
• Built-in energy meter
• OCPP 1.6 - compatible with various backend systems
FEATURES
• EV Connectors : (AC Type 2) 1 piece
• Number of Socket Outlets : AC Type 2 cable only
• Cable Length : 5 m
• Output Power : Nominal 22 kW
• Output Voltage (Uout) : AC 3-phase 320 ... 480 V
• Output Current Maximum (Iout) : AC 3-phase 32 A
• Connection Power : Nominal 22 kW
• Input Voltage (Uin) : AC 3-phase 380 ... 420 V
• Input Current : 3-phase 32 A
• Frequency (f) : 50 ... 60 Hz
• Number of Phases : 3
• Connection Configuration : TT, TN
• Number of RCDs Electric Vehicle Supply Equipment : Resid. Curr. Monitor
• Overvoltage Category : III
• Overload Protection : Overcurrent protection at 40 A
• Ambient Air Temperature : Operation -30 ... +50 °C
• Maximum Operating Altitude Permissible : 2000 m
• Communication Interface : Wi-Fi, Ethernet, Bluetooth, Modbus,4G
• Communication Protocol : OCPP 1.6
• Load Management Method : OCPP - Based
• Authentication Method : RFID,App,Free Vending
• Energy Meter Type : AC
• Enclosure Type : indoor, outdoor
• Mounting Type : Wall mounting
• Housing Material : Plastic
• Degree of Protection : acc. to IEC 60529 IP54
• Impact Resistance Rating : IK08
• Dimensions
• Product Net Width : 195 mm
• Product Net Depth / Length : 320 mm
• Product Net Height : 110 mm
• Product Net Weight : 5.3 kg
