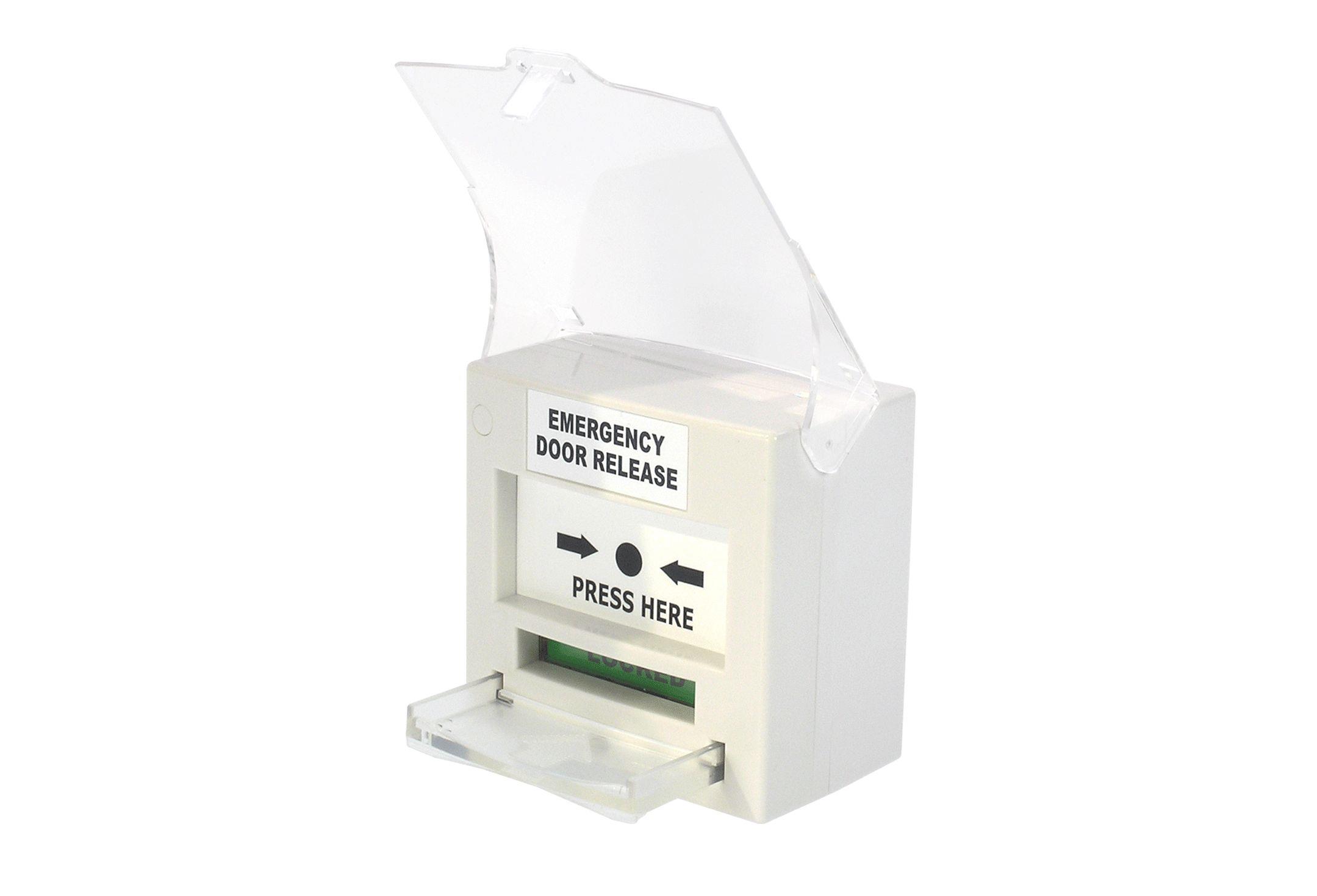

CP32-W
Breakglass Resettable Dual Pole with Flip Cover - WHITE # GIACP32W
FEATURES
• The main function of the emergency door release is to override the electrical locking/release devices in case of an emergency.
• Includes a hinged front cover to prevent the unit from being activating randomly
• RCM Mark & RoHs Compliant standards
• CSIRO 4 hours - AS 1530.4-2005 fire rated
• Switch rating 3A/125/250VAC
• Double pole unit, with changeable contacts from N/C to N/O
• White
• Dimensions (mm): 87 (L) x 91 (W) x 53 (D)
• Australia-2019100322 (CP-32GBZ-LB-ALM)
• Uses Breakglass Reset Key to suit CP32 series, CQR1030
• Glassless and resettable design
• Detachable terminal for easy wiring
• Plastic protection cover available
• The resetting process for the door release is quick and easy, simply insert the reset key into the reset hole on the under-side of the call point, and slide the bottom face down, releasing the push panel back into its original state, then simply clip the bottom face back up into place and it's ready for further use.
