Vertical Wall Mount Security Cabinet fits up to 24" Monitor
SECCAB
FEATURES
• The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations.
• The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.

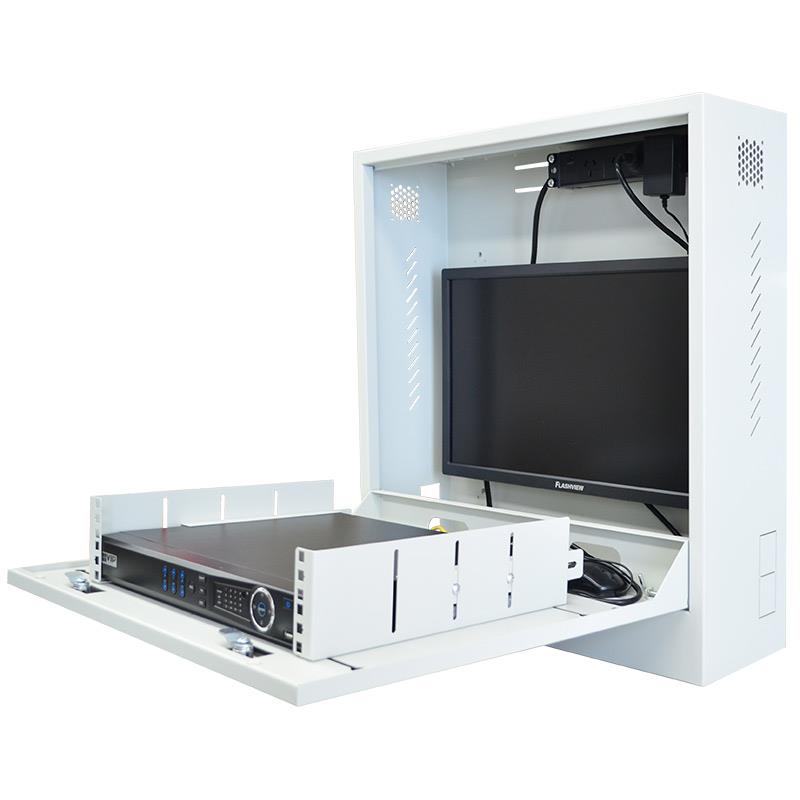

• The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor.
• It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs
• It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.
• Compact; only 580(W) x 635(H)x 180(D)mm (closed)
• Capacity: 2RU, 240~480mm width, 465mm depth
• Cable management knockouts from all cabinet sides
• Superior ventilation; optional 2 x 50mm cooling fans

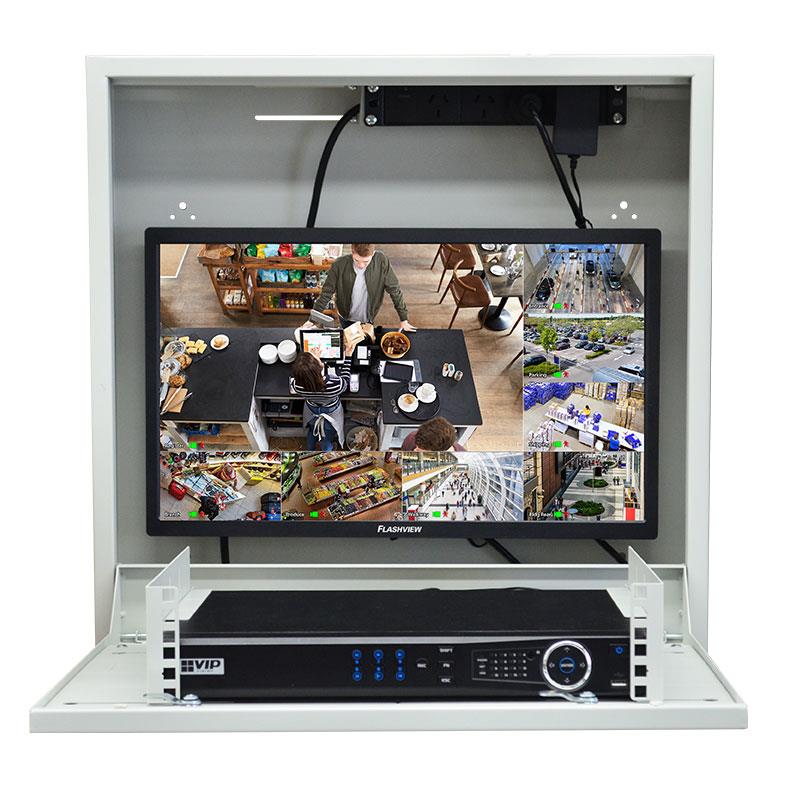

• Fit up to 24” monitor, with 50/75/100 VESA mounts

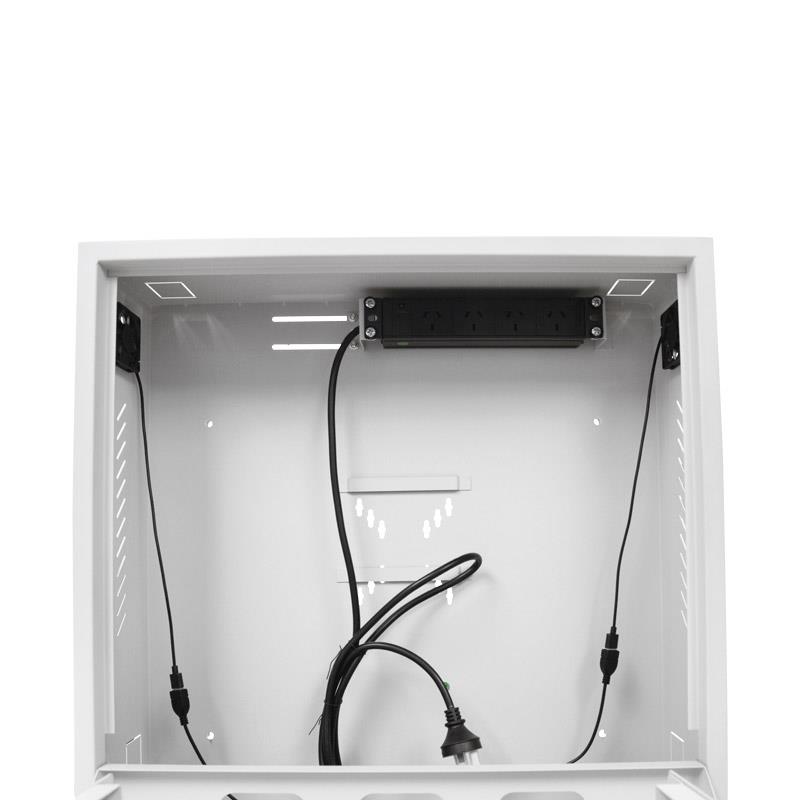

• Integrated 4 x outlet powerboard & 2 x cabinet locks
• 30kg cabinet load bearing capacity (10kg vertical shelf)
• 440mm width between mount points to fit wall studs
• SPCC steel construction and white powder coating
• USB Fans included
• Cable Knockouts 2 per side, 8 total (40 x 50mm each)
• Max. Capacity (H) 2RU (~90mm)
• Power Board 4 x Power Outlet
• Max. Capacity (W) Adjustable 240 ~ 480mm rackmount slides
• Load Capacity Wall Mount: 30kg / Hinged Shelf: 10kg
• Max. Capacity (D) 465mm

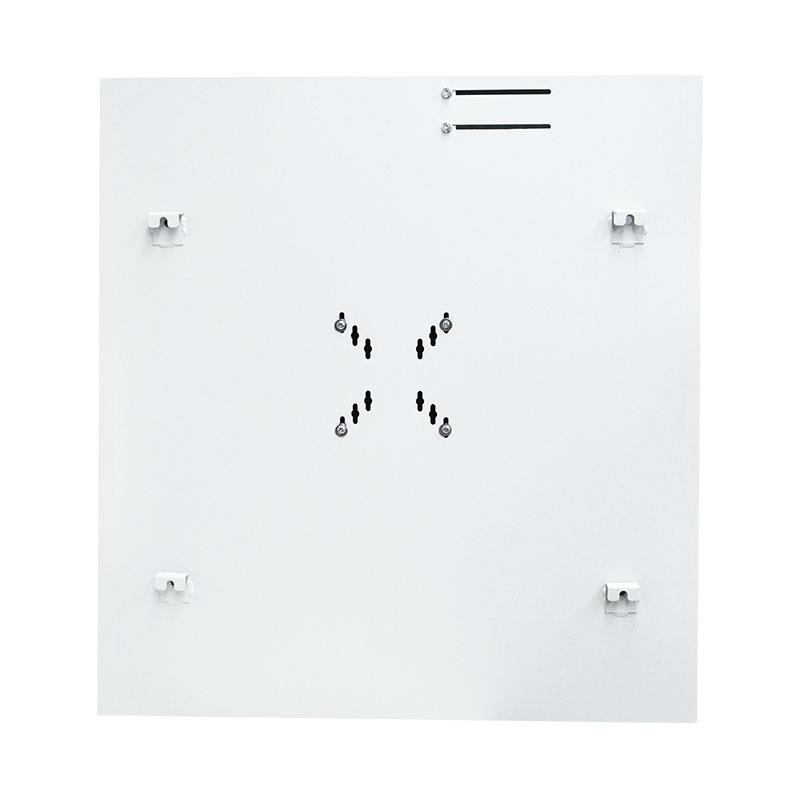

• Wall Mount 4 x Mounting Points with Hooks
• Max. Monitor Size 24” (16:9 widescreen)
• Wall Mount Dimensions 440mm x 353mm (W x H)
• VESA Mount 50 / 75 / 100
• Materials SPCC quality cold rolled steel, powder coated
• Fan Slots 2 x 50mm fan slots (optional)
• Weight 17.0kg

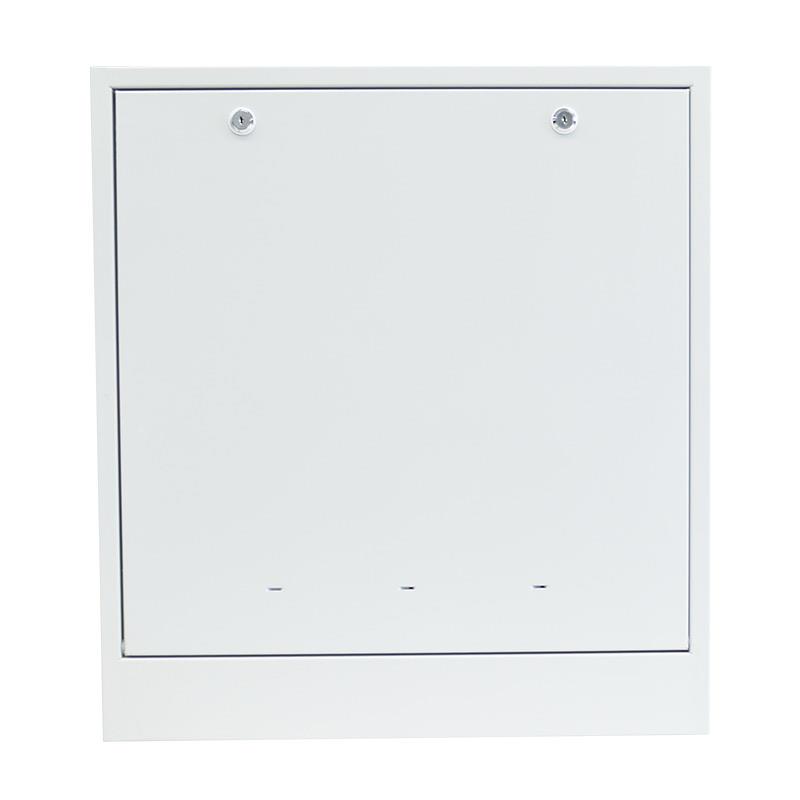

• Lockable 2 x locks on front door
• Dimensions (W x H x D)
• Closed: 580 x 635 x 180mm
• Open: 580 x 635 x 712mm
