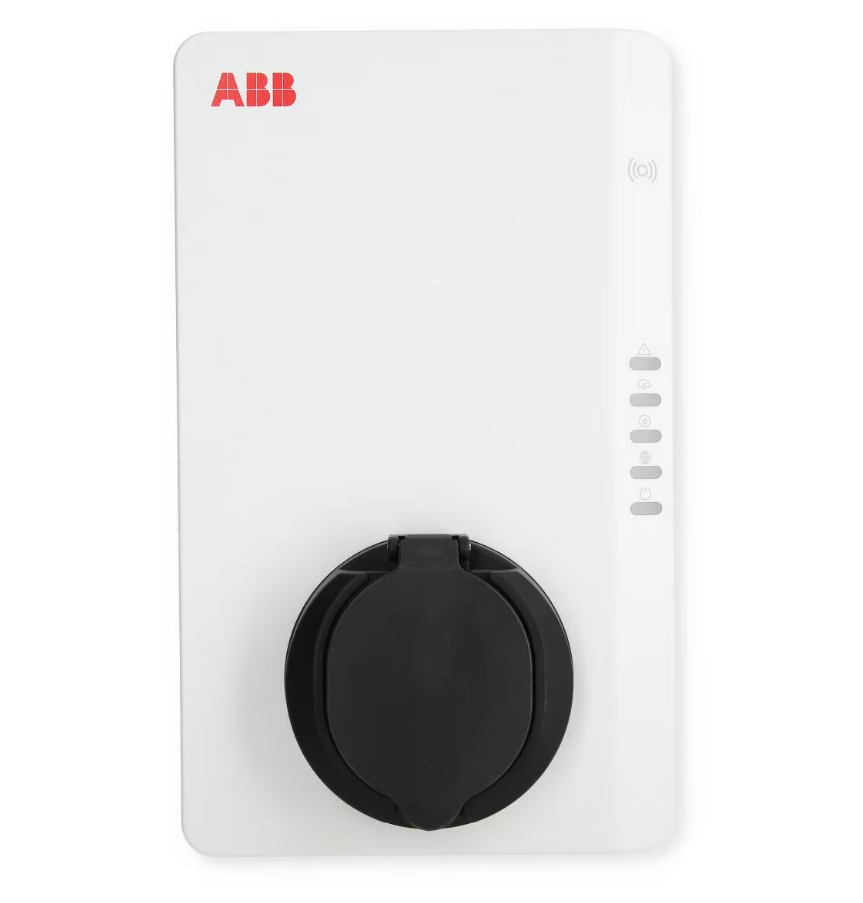

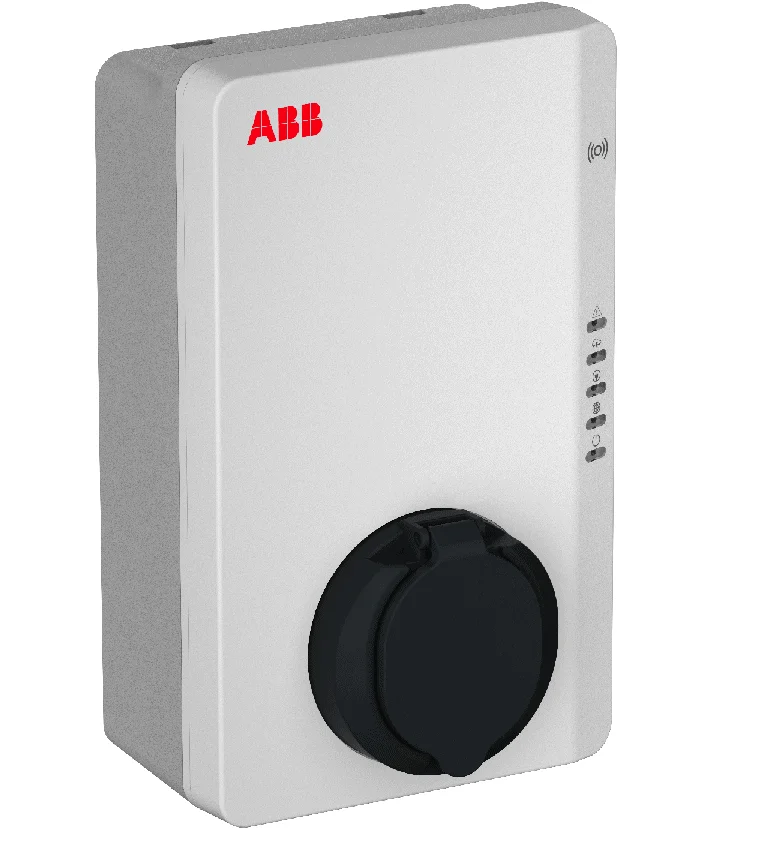

ABB TAC-W22-T-R-0 TERRA AC EV CHARGER WALLBOX 3P 415VAC 22kW WITH RFID

ABB TERRA AC EV Charger WallBox 3P 415VAC 22kW with RFID
TAC-W22-T-R-0

The Future Is Electric, And We’re Helping You Charge Ahead.
• The Terra AC charger is designed for electric vehicles and features RFID technology.
• It is compatible with socket type 2.
• The charger operates at a voltage rating of 415VAC three phase and has a rated power of 22kW, with a maximum current of 32A.
• The enclosure has a protection degree of IP54, ensuring durability and resistance to dust and water.
• Connectivity options include Wifi, Bluetooth, and Ethernet, allowing for easy communication and control.
• The charger also includes a built-in energy meter and can integrate with advanced energy systems for dynamic load management.
• Safety features are built-in to protect against overcurrent, overvoltage, undervoltage, ground fault, surge protection, and protective earth continuity monitoring.
• Additionally, the charger is enabled for remote software updates, ensuring that it can stay up-to-date with the latest features and improvements.
• Connectivity with Bluetooth, Wifi & Ethernet
• Integrated DC earth leakage protection
• Optimal charging with smart functionality
• Minimal on-site intervention with remote software updates
• IP54 Enclosure with Type 2 socket or integrated cable
• Set up for energy meter integration
• Dedicated ChargerSync™ app

FEATURES
• EV Connectors : No cable outlet
• Number of Socket Outlets : (AC Type 2) 1 piece
• Output Power : Nominal 22 kW
• Output Voltage (Uout) : AC 3-phase 320 ... 480 V
• Output Current Maximum (Iout) : AC 3-phase 32 A
• Connection Power : Nominal 22 kW
• Input Voltage (Uin) : AC 3-phase 380 ... 420 V
• Input Current : 3-phase 32 A
• Frequency (f) : 50 ... 60 Hz
• Number of Phases : 3
• Connection Configuration : TT, TN
• Number of RCDs Electric Vehicle Supply Equipment : Resid. Curr. Monitor
• Overvoltage Category : III
• Overload Protection : Overcurrent protection at 40 A
• Ambient Air Temperature : Operation -30 ... +50 °C
• Maximum Operating Altitude Permissible : 2000 m
• Communication Interface : Wi-Fi, Ethernet, Bluetooth, Modbus,4G
• Communication Protocol : OCPP 1.6
• Load Management Method : OCPP - Based
• Authentication Method : RFID,App,Free Vending
• Energy Meter Type : AC
• Enclosure Type : indoor, outdoor
• Mounting Type : Wall mounting
• Housing Material : Plastic
• Degree of Protection : acc. to IEC 60529 IP54
• Impact Resistance Rating : IK08
• Dimensions
• Product Net Width : 195 mm
• Product Net Depth / Length : 320 mm
• Product Net Height : 110 mm
• Product Net Weight : 2.7 kg

PDF Files

Terra AC wallbox installation PDF

Terra AC wallbox_parking and load management PDF

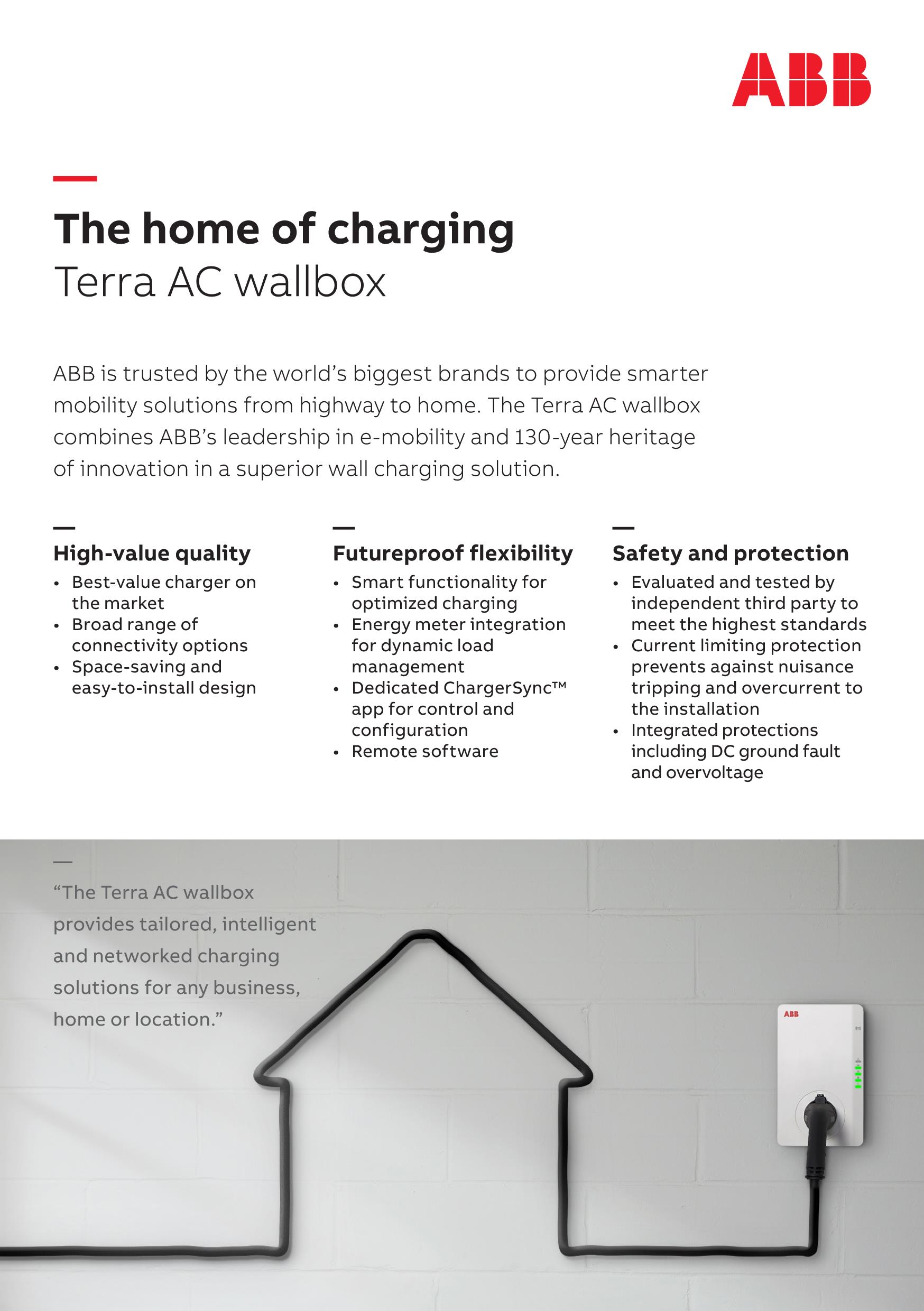

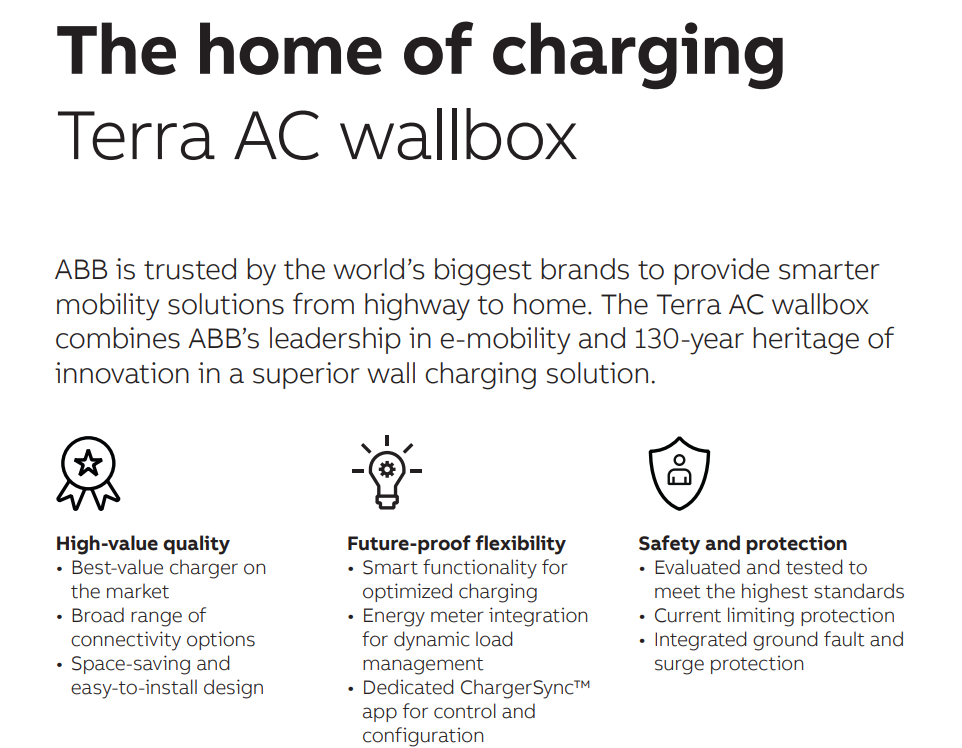

Terra AC wallbox brochure PDF

Load management Installation Guide PDF

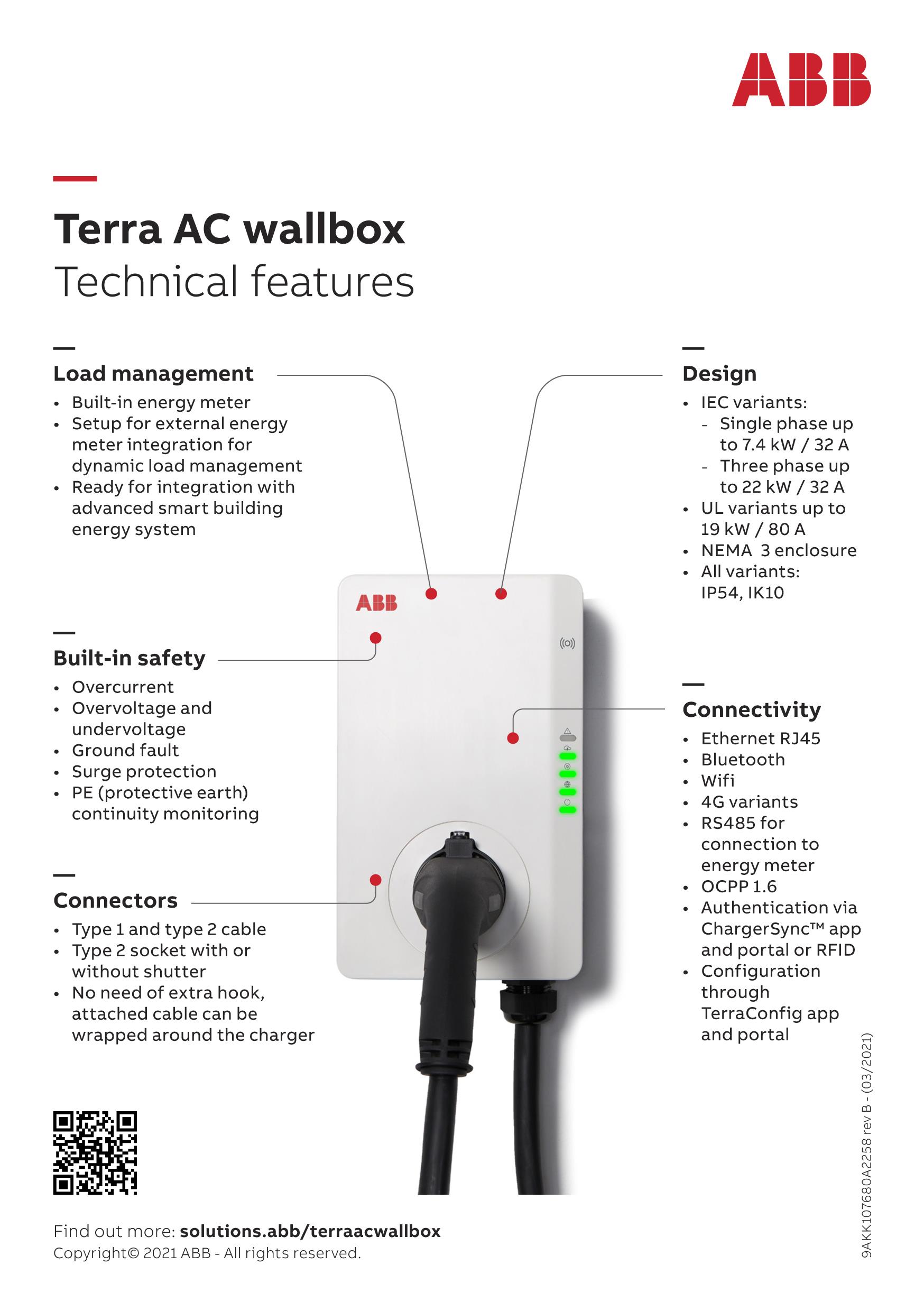

Terra AC wallbox leaflet PDF
