106-079

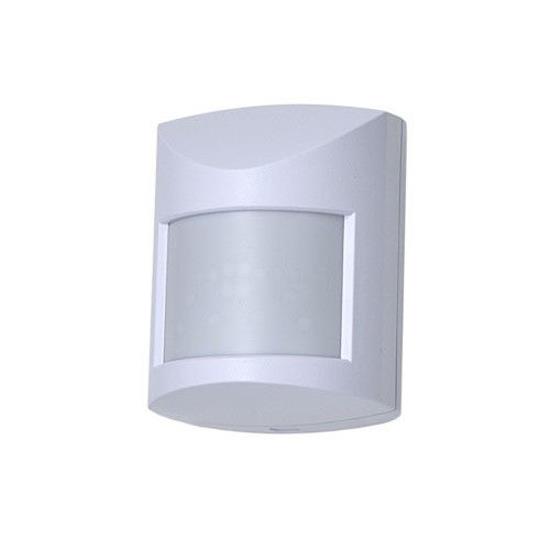

NESS Quantium-Q Quad PIR Detector
FEATURES
• Quad element pyroelectric sensor for improved detection and noise immunity
• Coverage area: 15m x 15m at a 90° wide angle
• Detects intruders by sensing body temperature using infrared technology
• 20 quad element detection zones for versatility
• Adjustable pulse count: selectable between 1–2 or 3–4 pulses
• Adjustable detection range: selectable high/low (15m max / 12m max)
• High immunity to radio frequency (R.F.), electrostatic discharge (E.S.D.), and white light interference
• High-quality patented Fresnel lens for precise sensing
• Front cover tamper protection for security
• Silent solid state relay output with normally closed contacts, 100mA max at 24V
• Tamper output with normally closed switch contacts
• Operating voltage: 9 to 15 VDC
• Current draw approximately 7mA
• Dimensions: 85 mm (H) x 66 mm (W) x 45 mm (D)
• Installation height: 1.1m min, 3.1m max, with optimal height between 2.1m–2.3m
• Suitable for wall or corner mounting
• Discreet size and suitable for most domestic and commercial security environments
• Designed and made in Australia using precision S.M.D. technology
• This PIR sensor offers reliable detection performance with flexibility and high immunity to false alarms, making it a popular choice for security systems.
