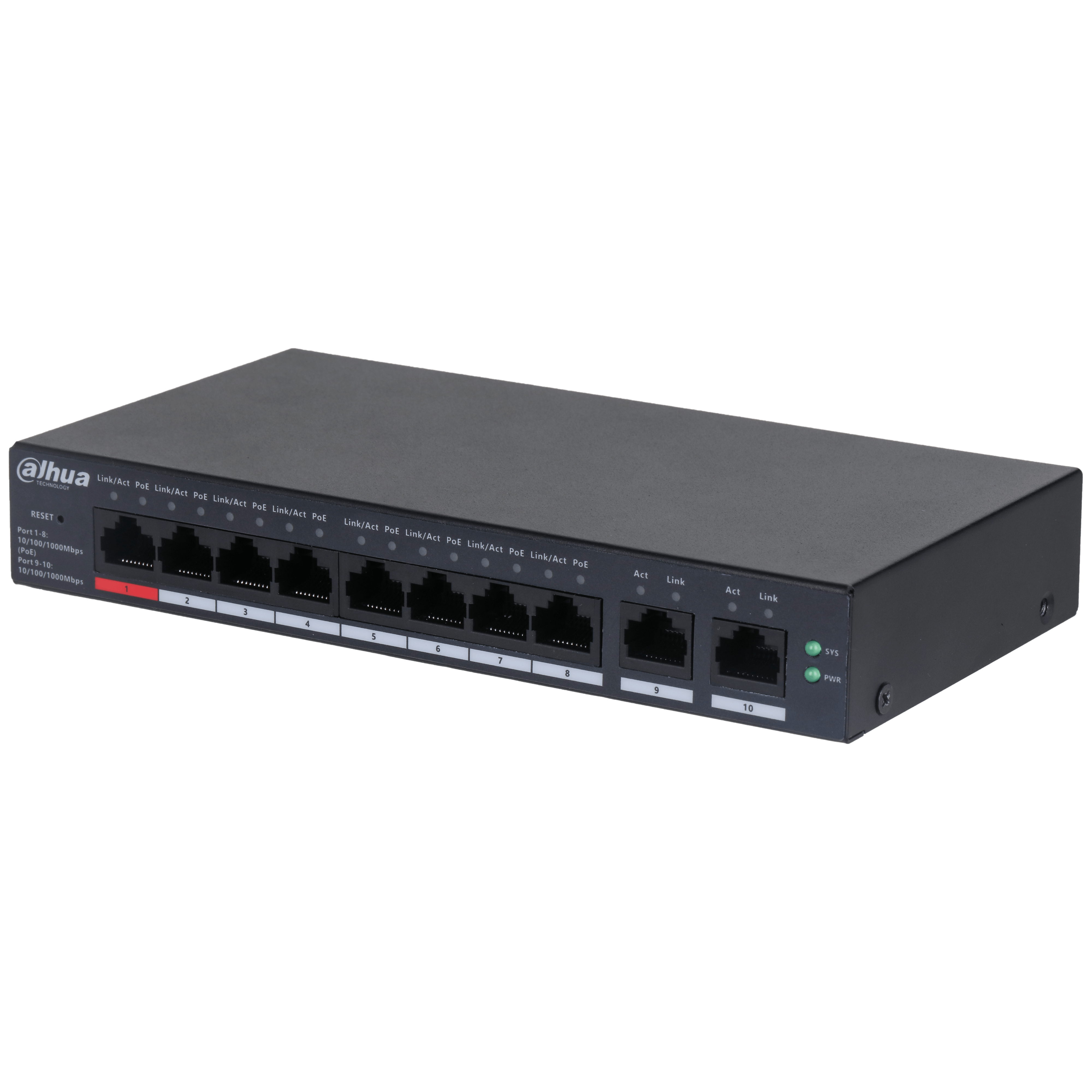

Dahua 10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE

Dahua 10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE
DH-CS4010-8GT-110
FEATURES
• Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
• Manages PoE power consumption and PoE power on/off.
• Supports Intelligent PoE.
• A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
• The Dahua Cloud Managed Switches allow you to add your devices by scanning the QR code and manage them using an integrated platform (mobile or WEB) via the cloud.
• The auto-generated network topology and rich management features enables an easy configuration and maintenance.
• A full set of PoE 2.0 functions is also provided, making it suitable for both surveillance and IT networking. Quick Deployment
• Deploy your devices and illustrate the corresponding topology on the app/web interface.
• Easy to add devices: Only requires one step (scan the QR code) to add your devices to your system.
• Topology auto-generation: DoLynk Care automatically identifies connected products and generates relevant topology.
• Unified platform: Remotely operate via web or app platforms, bringing convenience to conventional operation procedure.

Hardware
• Included Power Adapter : Yes
• PoE: Yes
• Ethernet Port: 8
• Ethernet Port Speed: 10/100/1000 Mbps
• Ethernet Port Uplink Speed: 10/100/1000 Mbps

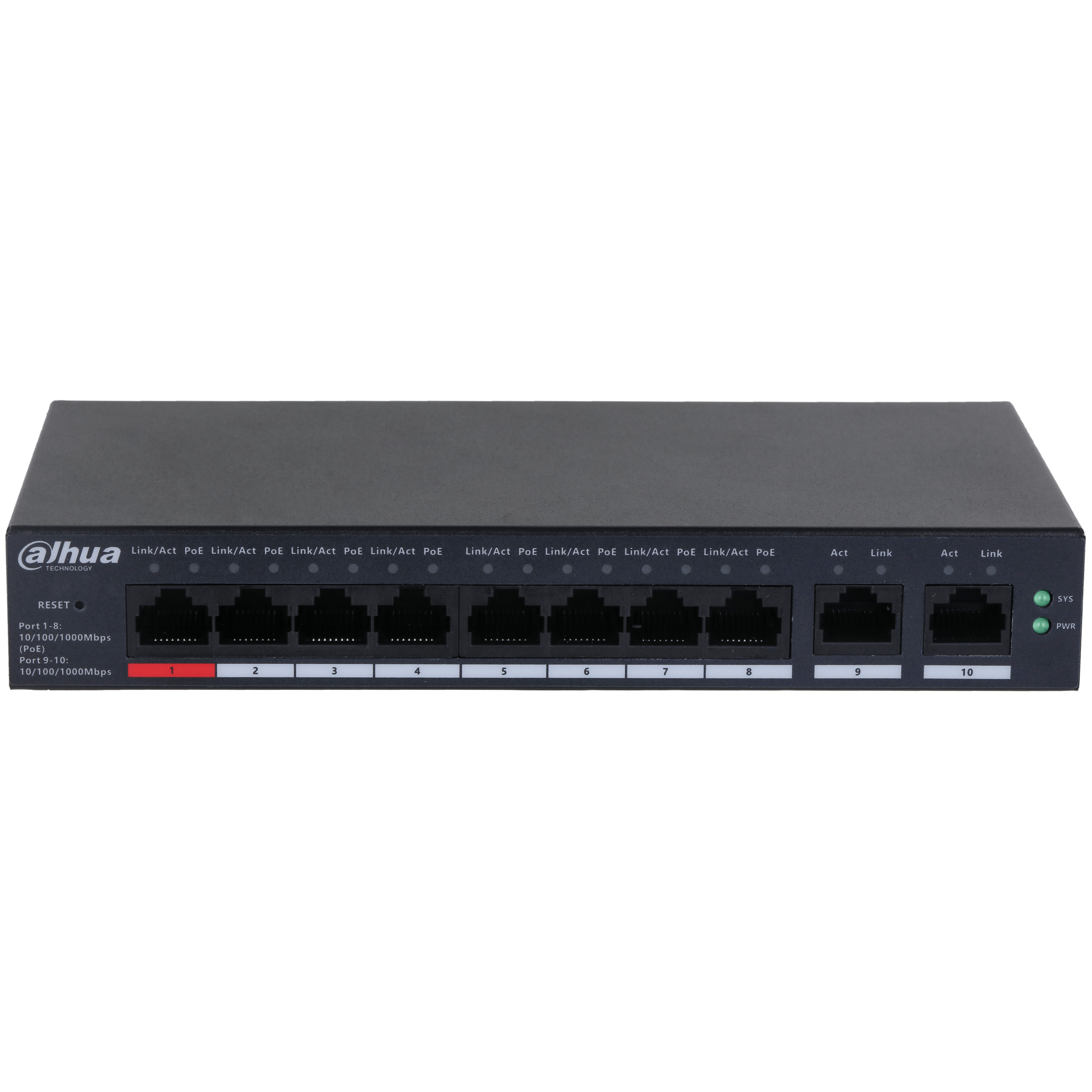

• Description of Function Slots: Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）
• Reset Button: 1

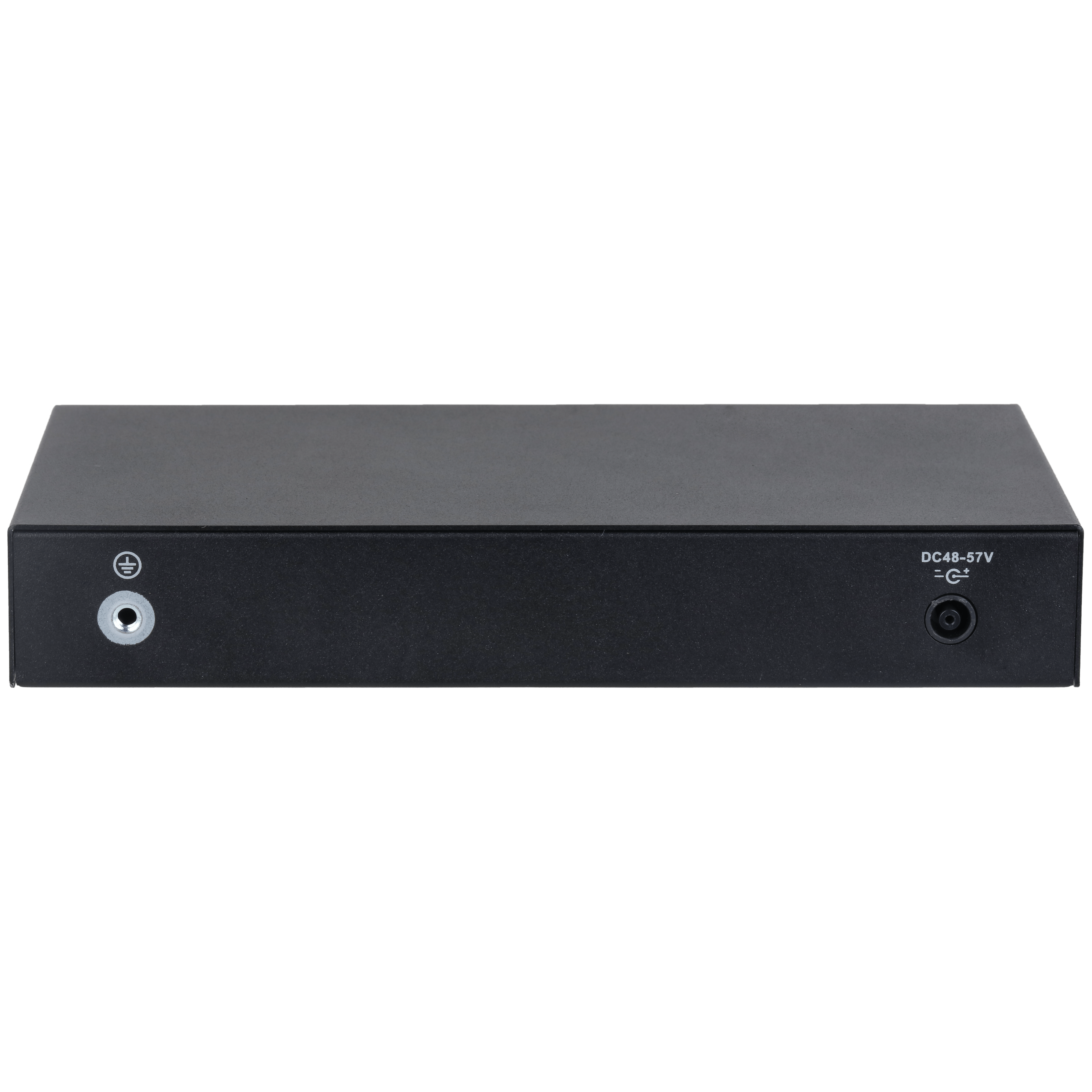

• Power Supply: External power supply: 54 VDC, 2.22 A

Performance
• Layer : Layer 2
• Management Type : Yes
• Smart Managed Switch : Yes
• MTBF : 127.3 years
• Switching Capacity : 20 Gbps
• Packet Forwarding Rate : 14.88 Mpps
• Packet Buffer Size : 4 Mbit
• Jumbo Frame : 15K Byte
• MAC Table Size : 8K
• VLAN Number : 32
• Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

POE Features
• PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
• PoE Power: Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W
• PoE Power Consumption Management: Yes
• PoE Pin Assignment: 1,2,4,5（V+）,3,6,7,8（V-）
• Long Distance PoE Transmission: Yes
• Spanning Tree Protocol: STP/RSTP
• VLAN Function: Port-based VLAN
• IEEE 802.3x Flow Control: Yes
• DHCP Function: DHCP Client
• Equipment Management: Web management; App management
