PW0912B10

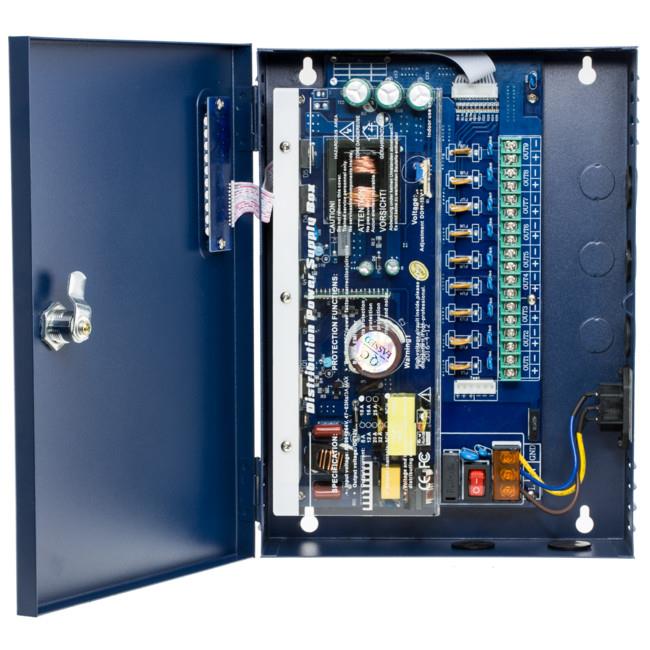

DOSS 9 Way 12V DC 10A Power Supply
FEATURES
• Universal AC input range: 96 - 264VAC, 47~63Hz
• Each channel is protected seperately. There is one tube fuse (Glass fuse) for the main board and PTC (Polymeric temperature control) fuse for every individual channel.
• Short circuit, over current and overload protection
• Models with power larger than 60W are configured with PFC function.
• Meet the European energy efficiency standard
• 5kA surge protection
• High quality cooling fin to reduce power consumption
• External LED indicators for each channel output
• Extra AC jack on the side of box (AC power lead is not included)
• Buit-in EMI wave filter with 100% full load burn-in test
• Using 105°C long life electrolytic capacitors
• Wall type blue baking finished shell
• Input: 93 - 264V AC
• Output: DC 12V 10A
• Operating temperature: 30 ~ 70°C
